General Details

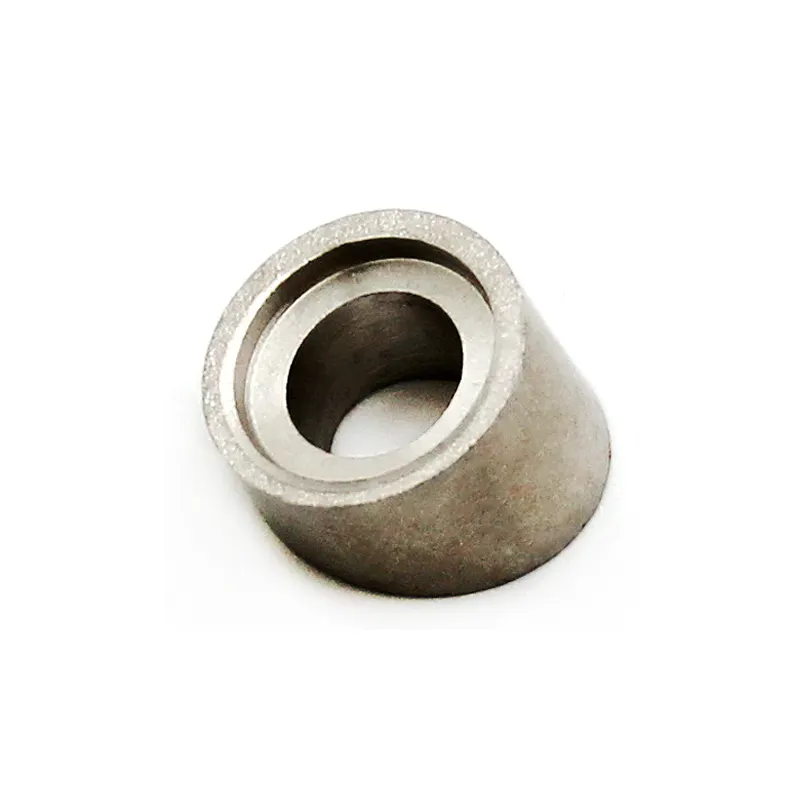

Countersunk Angled Washer is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Countersunk Angled Washer | |||||||||||||||

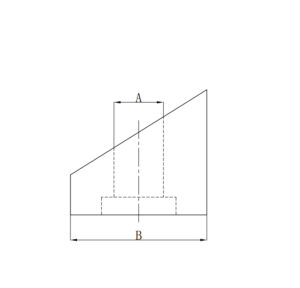

| ITEM NO | A(Hole Size) | Post Size | B | ||||||||||||
| W042-14-1.5 | 1/4″ | 1-1/2″ | 5/8″ | ||||||||||||
| W042-14-2.0 | 1/4″ | 2″ | 5/8″ | ||||||||||||
| W042-516-1.5 | 5/16″ | 1-1/2″ | 5/8″ | ||||||||||||
| W042-516-2.0 | 5/16″ | 2″ | 11/16″ | ||||||||||||
| W042-38-1.5 | 3/8″ | 1-1.5″ | 11/16″ | ||||||||||||
| W042-38-2.0 | 3/8″ | 2″ | 11/16″ | ||||||||||||
