General Details

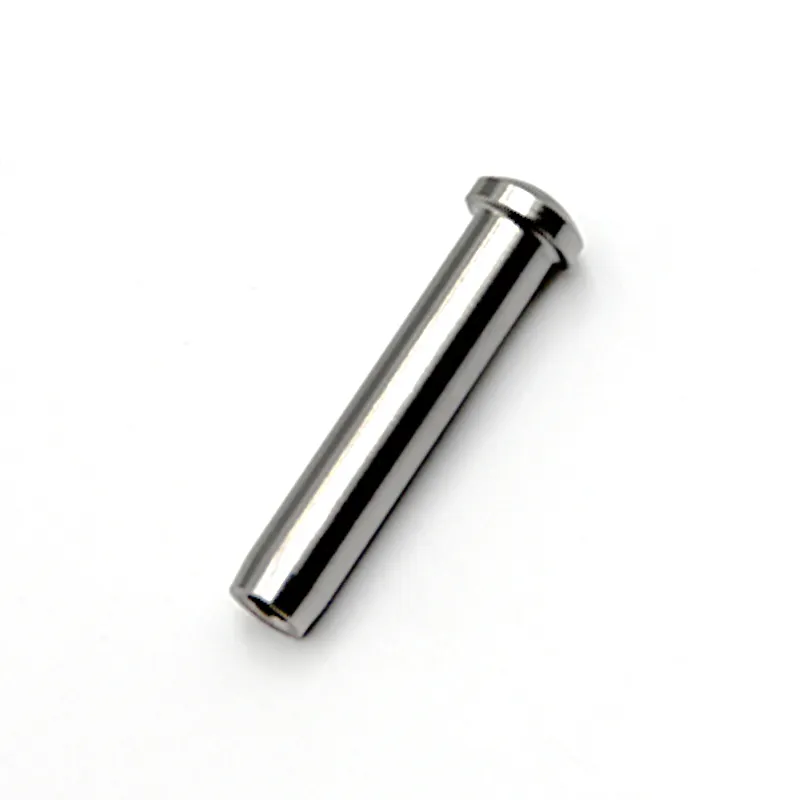

Dome Head Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

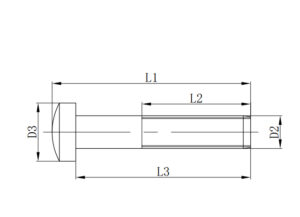

| Dome Head Terminal | |||||||||||||||
| ITEM NO | WIRE | L1 | L2 | L3 | D2 | D3 | |||||||||
| mm | mm | mm | mm | mm | mm | ||||||||||
| 2016-0003 | 3 | 35 | 25 | 32 | 5.5 | 8 | |||||||||
| 2016-0004 | 4 | 35 | 25 | 32 | 6.35 | 10 | |||||||||
| 2016-0005 | 5 | 41 | 30 | 36 | 7.5 | 11.5 | |||||||||
| 2016-0006 | 6 | 52 | 40 | 47 | 9 | 14 | |||||||||
| 2016-0008 | 8 | 66 | 50 | 60 | 12.58 | 18 | |||||||||
| 2016-0010 | 10 | 77 | 60 | 70 | 16 | 22 | |||||||||
