General Details

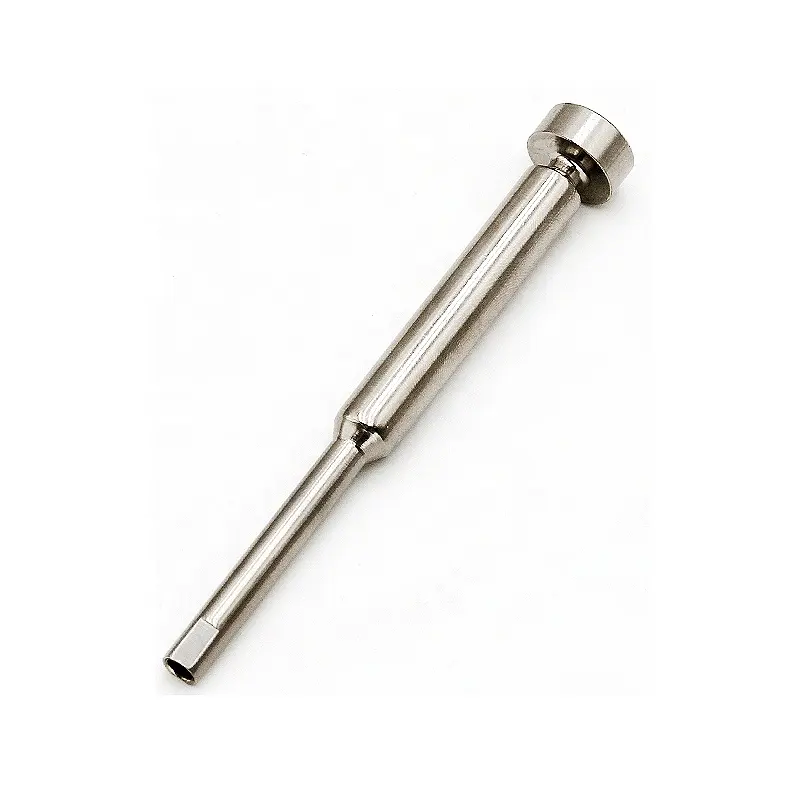

Dome Swage, Adjustable is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

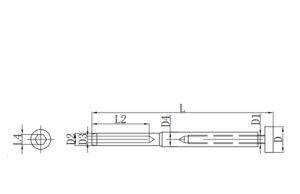

| Dome Swage, Adjustable | |||||||||||||||
| ITEM NO | D1 | WireΦ | L | L2 | L4 | D | D2 | D3 | D4 | ||||||
| in | in | in | in | in | in | in | in | in | |||||||
| 2011-1/8H | 1/4″ | 1/8″ | 3.5″ | 1.54″ | 0.19″ | 0.55″ | 0.218″ | 0.14″ | 0.354″ | ||||||
| 2011-3/16H | 1/4″ | 3/16″ | 4″ | 2.06″ | 0.19″ | 0.55″ | 0.295″ | 0.201″ | 0.354″ | ||||||
| 2011-1/4H | 5/16″ | 1/4″ | 4.625″ | 2.58″ | 0.19″ | 0.65″ | 0.425″ | 0.265″ | 0.496″ | ||||||
| 2011-1/8M | 1/4″ | 1/8″ | 3.5″ | 1.54″ | 0.19″ | 0.55″ | 0.218″ | 0.14″ | 0.354″ | ||||||
| 2011-3/16M | 1/4″ | 3/16″ | 4″ | 2.06″ | 0.19″ | 0.55″ | 0.295″ | 0.201″ | 0.354″ | ||||||
| 2011-1/4M | 5/16″ | 1/4″ | 4.625″ | 2.58″ | 0.19“ | 0.65” | 0.425“ | 0.265” | 0.496“ | ||||||
