Jaw Turnbuckle

  1. Home
  2. Cable Railing Hardware
  3. Surface Mount
  4. Jaw Turnbuckle
Categories: ,
General Details

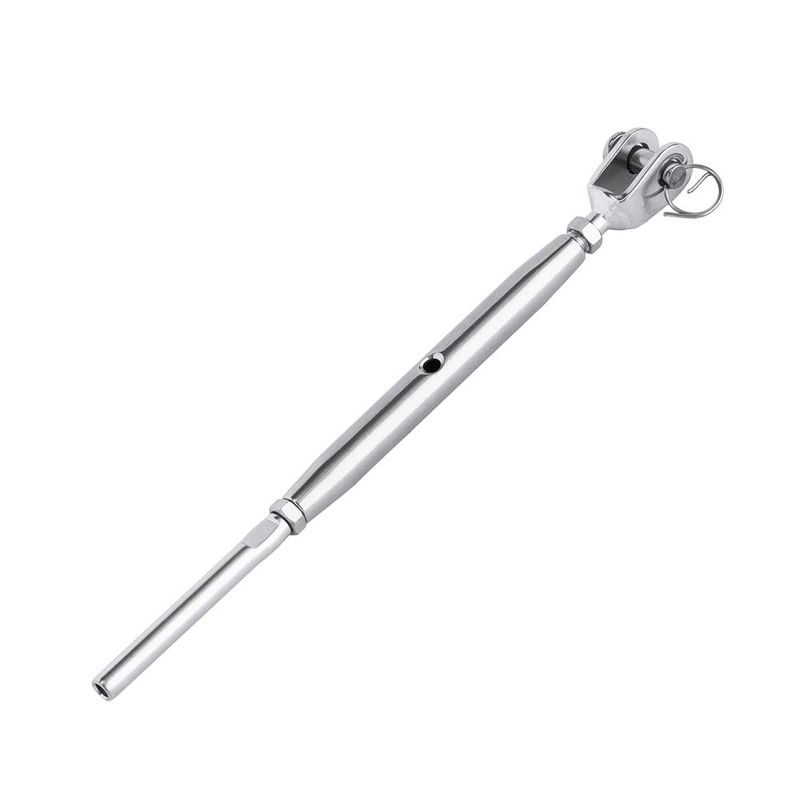

Our Jaw Turnbuckle is made of marine grade 316 Stainless Steel for maximum corrosion resistance and durability. It is a tension adjustment fitting that attaches to eyebolts, eyelets, drilled post tabs or flat metal bars using a removable clevis pin.

Available as Machine Swaged to cable or Hand Swaged for field swaging.

Tension adjustment fitting, can be paired with any other end fitting. Typically paired with a Fixed Jaw End or another Jaw Turnbuckle.

DIN741 Wire Rope Clip
ITEM NO SIZE A B C D E F G
mm mm mm mm mm mm mm mm
HF-8201-0003 3 9 10 12 4 10 21 16
HF-8201-0005 5 11 11 13 5 10 23 19
HF-8201-0006 6 13 12 15 5 11 26 23
HF-8201-0008 8 16 14 19 6 15 30 28
HF-8201-0010 10 19 18 22 8 17 34 34
HF-8201-0011 11 20 18 22 8 18 36 36
HF-8201-0013 13 24 23 30 10 21 42 45
HF-8201-0014 14 25 23 30 10 22 44 47
HF-8201-0016 16 29 26 33 12 26 50 51
HF-8201-0019 19 32 29 38 12 30 54 63
HF-8201-0022 22 37 33 44 14 34 61 71
HF-8201-0026 26 41 35 45 14 37 65 81



Code Capacity ton For Length mm Weight kgs
617196 1.5 1070 77
617197 2.5 1070 99
