General Details

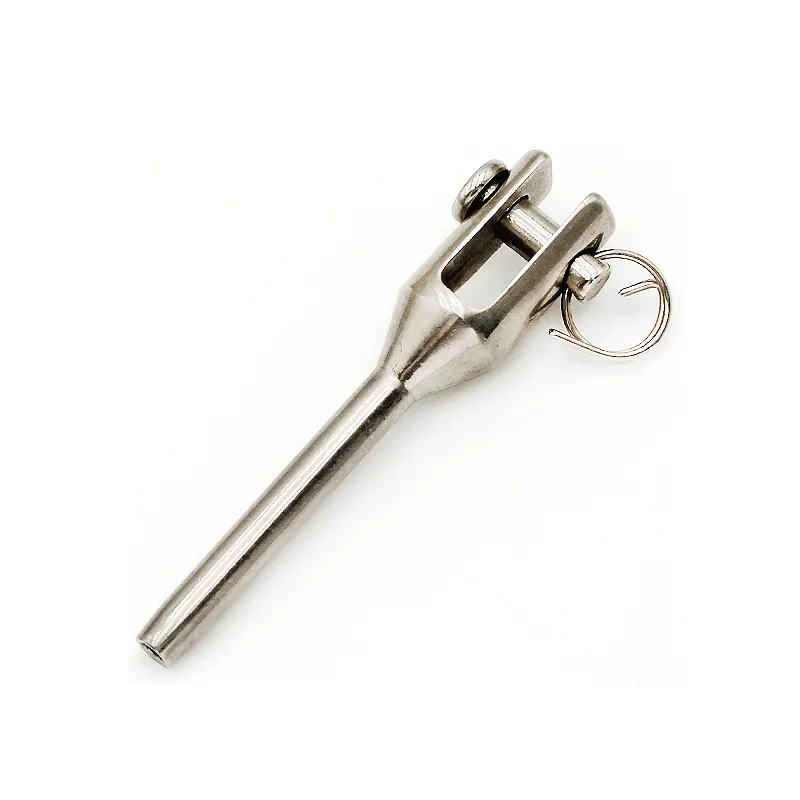

Machined Fork Swage Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

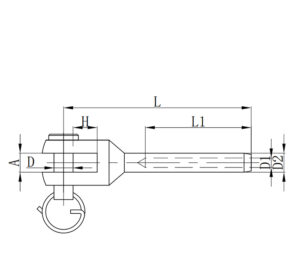

| Machined Fork Swage Terminal | |||||||||||||||
| ITEM NO | Wire（mm） | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L (mm) | |||||||
| 2007-0003 | 3 | 7.5 | 6 | 10 | 3.3 | 6.5 | 39 | 73 | |||||||
| 2007-0004 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 45 | 86 | |||||||
| 2007-0005 | 5 | 12 | 9 | 14 | 5.3 | 9 | 52 | 100 | |||||||
| 2007-0006 | 6 | 14 | 12 | 20 | 6.4 | 12.5 | 64 | 128 | |||||||
| 2007-0007 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 135 | |||||||
| 2007-0008 | 8 | 17 | 16 | 26 | 8.4 | 16 | 80 | 155 | |||||||
| 2007-0010 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 174 | |||||||
| 2007-0012 | 12 | 20 | 19 | 30 | 12.6 | 20 | 105 | 197 | |||||||
| 2007-0014 | 14 | 22 | 22 | 35 | 14.7 | 25 | 140 | 239 | |||||||
| 2007-0016 | 16 | 25 | 25 | 38 | 16.9 | 28 | 160 | 271 | |||||||
| 2007-0019 | 19 | 30 | 28 | 41 | 20 | 34.5 | 200 | 327 | |||||||
| 2007-0022 | 22 | 35 | 32 | 52 | 23.2 | 40.5 | 230 | 377 | |||||||
| 2007-0026 | 26 | 35 | 35 | 52 | 27.5 | 46 | 280 | 434 | |||||||
