General Details

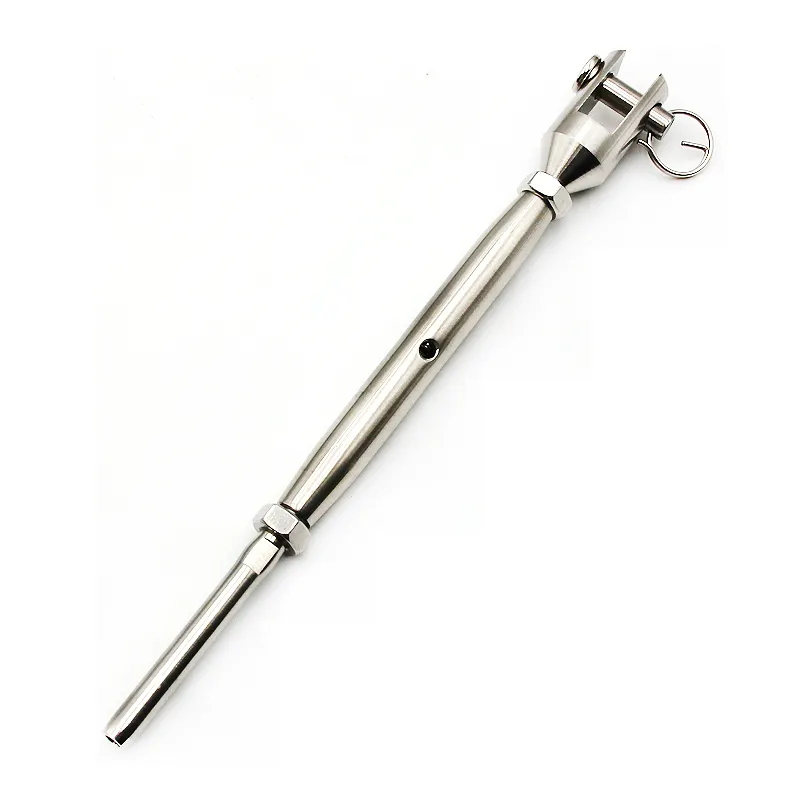

Rigging Screw Machined Fork & Swage is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Rigging Screw Machined Fork & Swage | |||||||||||||||

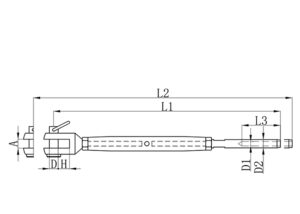

| ITEM NO | Thread Size | Wire mm | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L3 (mm) | L1 (mm) | L2 (mm) | |||||
| 1059-0402 | M4 | 2 | 5.5 | 4 | 8 | 2.2 | 4.8 | 24 | 130 | 190 | |||||
| 1059-0502 | M5 | 2 | 6.5 | 5 | 10 | 2.2 | 5.5 | 32 | 150 | 210 | |||||
| 1059-0525 | M5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 32 | 150 | 210 | |||||
| 1059-0603 | M6 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 39 | 180 | 250 | |||||
| 1059-0604 | M6 | 4 | 7.5 | 6 | 10 | 4.3 | 7.5 | 45 | 190 | 260 | |||||
| 1059-0804 | M8 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 45 | 210 | 285 | |||||
| 1059-0805 | M8 | 5 | 11 | 8 | 11 | 5.3 | 9 | 52 | 215 | 290 | |||||
| 1059-1005 | M10 | 5 | 12 | 9 | 14 | 5.3 | 9 | 52 | 240 | 330 | |||||
| 1059-1006 | M10 | 6 | 12 | 9 | 14 | 6.4 | 12.6 | 64 | 255 | 345 | |||||
| 1059-1206 | M12 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 64 | 300 | 410 | |||||
| 1059-1208 | M12 | 8 | 14 | 12 | 20 | 8.4 | 16 | 80 | 320 | 430 | |||||
| 1059-1407 | M14 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 330 | 450 | |||||
| 1059-1608 | M16 | 8 | 17 | 16 | 26 | 8.4 | 16 | 80 | 370 | 510 | |||||
| 1059-1610 | M16 | 10 | 17 | 16 | 26 | 10.5 | 18 | 90 | 380 | 520 | |||||
| 1059-2010 | M20 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 410 | 560 | |||||
| 1059-2012 | M20 | 12 | 20 | 19 | 30 | 12.6 | 20 | 105 | 425 | 575 | |||||
| 1059-2214 | M22 | 14 | 22 | 22 | 35 | 14.7 | 25 | 140 | 540 | 720 | |||||
| 1059-2416 | M24 | 16 | 25 | 25 | 38 | 16.9 | 28 | 160 | 630 | 860 | |||||
| 1059-2719 | M27 | 19 | 30 | 28 | 41 | 20 | 34.5 | 200 | 720 | 950 | |||||
| 1059-3022 | M30 | 22 | 35 | 32 | 52 | 23.2 | 40.5 | 230 | 820 | 1080 | |||||
| 1059-3626 | M36 | 26 | 35 | 35 | 52 | 27.5 | 46 | 280 | 910 | 1185 | |||||
