General Details

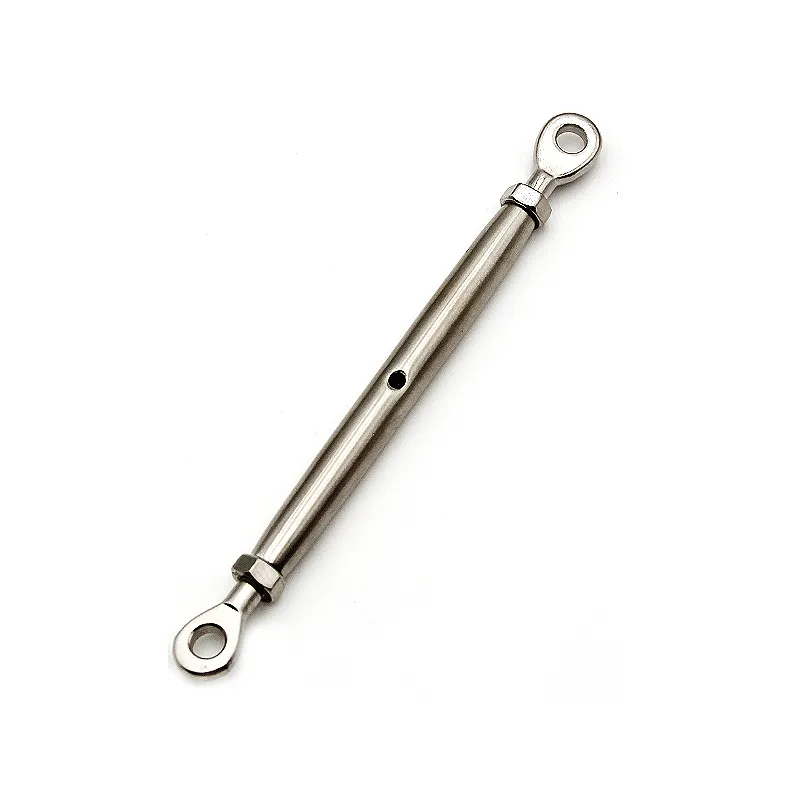

Rigging Screw with Eye & Eye, US Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

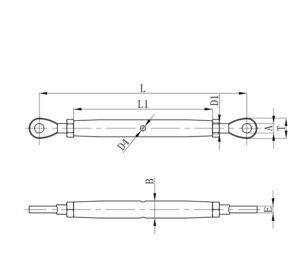

| Rigging Screw with Eye & Eye, US Type | |||||||||||||||
| ITEM NO | D1 | B | L | L1 | E | A | D4 | T | Body THK | ||||||
| 1002-3/16 | 3/16″ | 0.31″ | 4.72″ | 3.15″ | 0.12″ | 0.22″ | 0.10″ | 0.47″ | 0.05″ | ||||||
| 1002-1/4 | 1/4″ | 0.39″ | 5.31″ | 3.74″ | 0.16″ | 0.26″ | 0.13″ | 0.55″ | 0.07″ | ||||||
| 1002-5/16 | 5/16″ | 0.51″ | 6.3″ | 4.13″ | 0.20″ | 0.33″ | 0.17″ | 0.67″ | 0.09″ | ||||||
| 1002-3/8 | 3/8″ | 0.67″ | 7.48″ | 4.92″ | 0.24″ | 0.41″ | 0.20″ | 0.87″ | 0.10″ | ||||||
| 1002-1/2 | 1/2″ | 0.83″ | 8.86″ | 5.91″ | 0.31″ | 0.51″ | 0.24″ | 0.98″ | 0.12″ | ||||||
| 1002-5/8 | 5/8″ | 1.04″ | 10.83″ | 7.48″ | 0.39″ | 0.57″ | 0.32″ | 1.22″ | 0.14″ | ||||||
| 1002-3/4 | 3/4″ | 1.32″ | 12.99″ | 8.27″ | 0.59″ | 0.77″ | 0.35″ | 1.57″ | 0.18″ | ||||||
