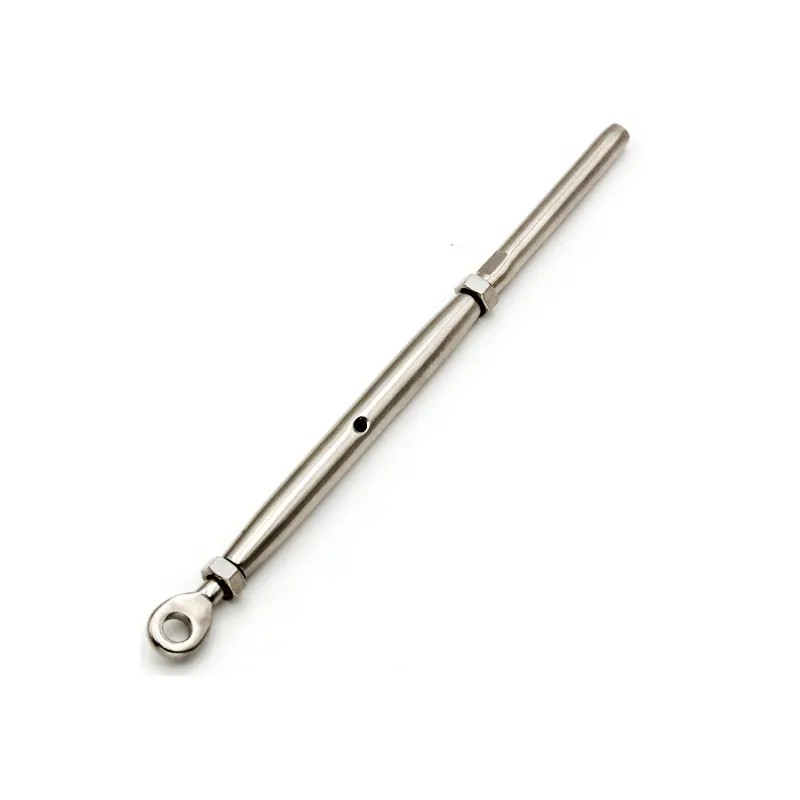

Rigging Screw with Eye & Swage, European Type

  1. Home
  2. Cable Railing Accessories
  3. Rigging Screw with Eye & Swage, European Type
Category:
General Details

Rigging Screw with Eye & Swage, European Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Rigging Screw with Eye & Swage, European Type

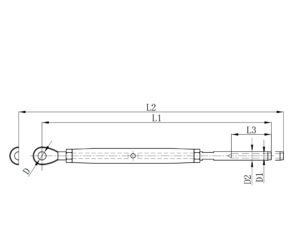

ITEM NO Thread Size Wire mm D (mm) D1 (mm) D2 (mm) L3（mm） L1（mm） L2（mm）
1050-0502 M5 2 5.5 2.2 5.5 32 155 215
1050-0525 M5 2.5 5.5 2.7 5.5 32 155 215
1050-0603 M6 3 6.5 3.3 6.35 39 175 245
1050-0604 M6 4 6.5 4.3 7.5 45 185 255
1050-0804 M8 4 8.5 4.3 7.5 45 200 275
1050-0805 M8 5 8.5 5.3 9 52 205 280
1050-1005 M10 5 10.5 5.3 9 52 230 320
1050-1006 M10 6 10.5 6.4 12.6 64 245 335
1050-1206 M12 6 13 6.4 12.6 64 280 395
1050-1208 M12 8 13 8.4 16 80 300 415
1050-1407 M14 7 13 7.4 14.2 70 310 430
1050-1608 M16 8 14.5 8.4 16 80 345 485
1050-1610 M16 10 14.5 10.5 18 90 355 495
1050-2010 M20 10 19.5 10.5 18 90 400 550
1050-2012 M20 12 19.5 12.6 20 105 415 565
1050-2214 M22 14 23 14.7 25 140 527 708
1050-2416 M24 16 26 16.9 28 160 613 846
1050-2719 M27 19 28.5 20 34.5 200 702 934
1050-3022 M30 22 33 23.2 40.5 230 777 1057
1050-3626 M36 26 36 27.5 46 280 873 1150
