Rigging Screw with Jaw & Jaw, US Type

  1. Home
  2. Cable Railing Accessories
  3. Rigging Screw with Jaw & Jaw, US Type
Category:
General Details

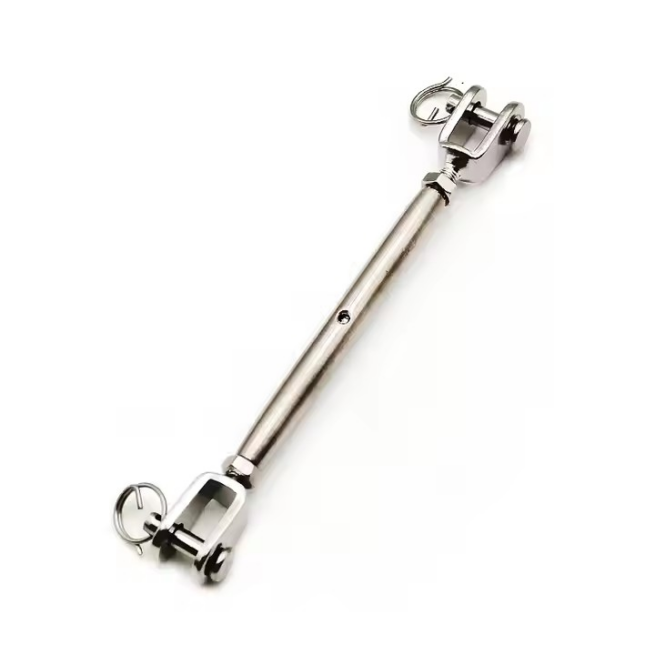

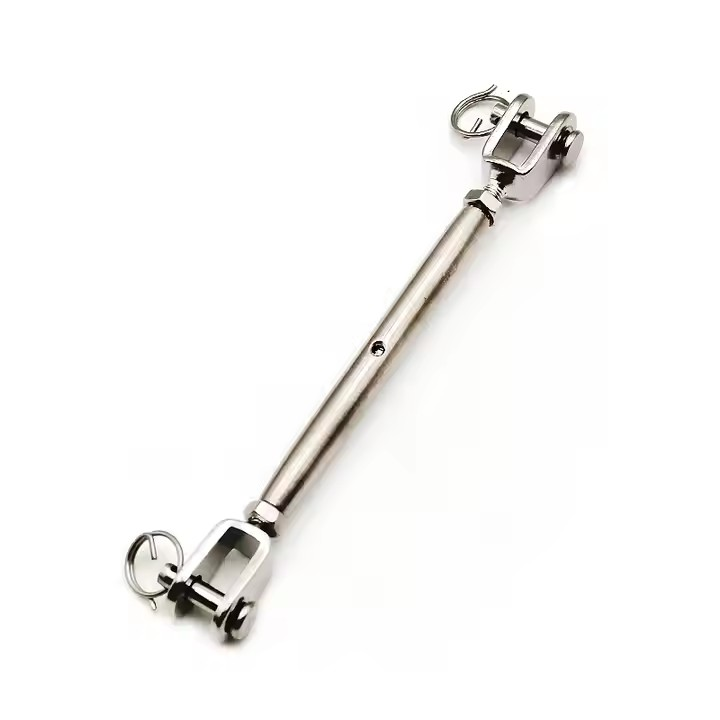

Rigging Screw with Jaw & Jaw, US Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Rigging Screw with Jaw & Jaw, US Type

ITEM NO

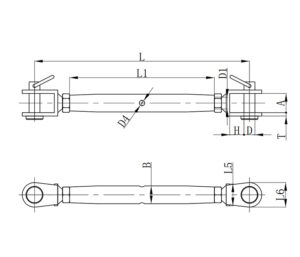

 D1 B L L1 L5 L6 A D D4 H T Body THK
1001-5/32 5/32″ 0.28″ 4.33″ 2.76″ 0.39″ 0.47″ 0.22″ 0.16″ 0.10″ 0.31″ 0.10″ 0.05″
1001-3/16 3/16″ 0.31″ 5.12″ 3.15″ 0.39″ 0.51″ 0.26″ 0.20″ 0.10″ 0.39″ 0.12″ 0.05″
1001-1/4 1/4″ 0.39″ 5.90″ 3.74″ 0.39″ 0.55″ 0.30″ 0.24″ 0.13″ 0.39″ 0.12″ 0.07″
1001-5/16 5/16″ 0.51″ 6.50″ 4.13″ 0.47″ 0.73″ 0.43″ 0.31″ 0.17″ 0.43″ 0.12″ 0.079″
1001-3/8 3/8″ 0.67″ 7.48″ 4.92″ 0.53″ 0.83″ 0.47″ 0.35″ 0.20″ 0.55″ 0.16″ 0.10″
1001-1/2 1/2″ 0.83″ 9.65″ 5.91″ 0.73″ 1.02″ 0.55″ 0.47″ 0.24″ 0.79″ 0.20″ 0.12″
1001-9/16 9/16″ 0.83″ 10.63″ 6.50″ 0.79″ 1.04″ 0.59″ 0.47″ 0.28″ 0.87″ 0.20″ 0.12″
1001-5/8 5/8″ 1.04″ 12.20″ 7.48″ 0.96″ 1.42″ 0.67″ 0.63″ 0.31″ 1.02″ 0.24″ 0.14″
1001-3/4 3/4″ 1.32″ 14.17″ 8.27″ 1.16″ 1.79″ 0.79″ 0.75″ 0.35″ 1.18″ 0.24″

0.18″
