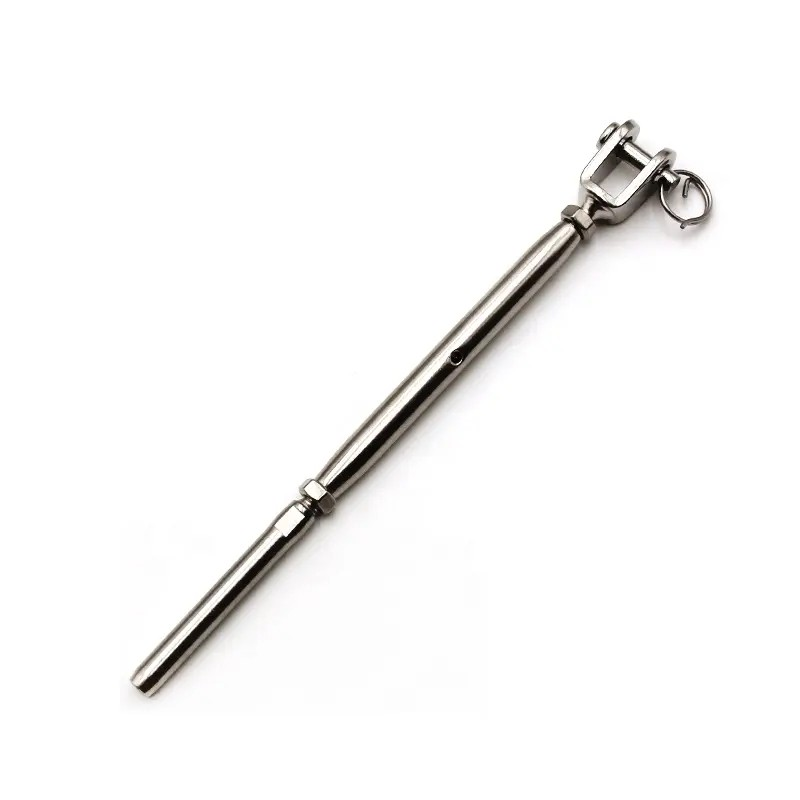

Rigging Screw with Jaw & Swage, European Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Rigging Screw with Jaw & Swage, European Type

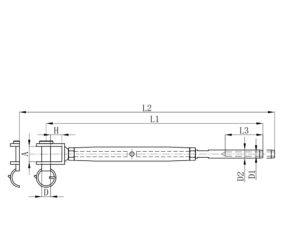

ITEM NO Thread Wire A D H D1 D2 L3 L1 L2
size mm mm mm mm mm mm mm mm mm
1047-0402 M4 2 5.5 4 8 2.2 4.8 24 125 150
1047-0502 M5 2 6.5 5 10 2.2 5.5 32 155 215
1047-0525 M5 2.5 6.5 5 10 2.7 5.5 32 155 215
1047-0532 M5 3.2 6.5 5 10 3.5 6.35 39 160 220
1047-0603 M6 3 7.5 6 10 3.3 6.35 39 175 245
1047-0632 M6 3.2 7.5 6 10 3.5 6.35 39 175 245
1047-0604 M6 4 7.5 6 10 4.3 7.5 45 185 255
1047-0804 M8 4 11 8 11 4.3 7.5 45 200 275
1047-0805 M8 5 11 8 11 5.3 9 52 205 280
1047-1005 M10 5 12 9 14 5.3 9 52 230 320
1047-1006 M10 6 12 9 14 6.4 12.6 64 245 335
1047-1206 M12 6 14 12 20 6.4 12.6 64 285 400
1047-1208 M12 8 14 12 20 8.4 16 80 305 420
1047-1407 M14 7 15 12 22 7.4 14.2 70 315 435
1047-1608 M16 8 17 16 26 8.4 16 80 360 500
1047-1610 M16 10 17 16 26 10.5 18 90 370 510
1047-2010 M20 10 20 19 30 10.5 18 90 410 560
1047-2012 M20 12 23 19 35 12.6 20 105 430 580
1047-2214 M22 14 30 22 46.5 14.7 25 140 545 715
1047-2416 M24 16 30 25 49 16.9 28 160 625 855
1047-2719 M27 19 34 28 54 20 34.5 200 735 970
1047-3022 M30 22 40 32 62 23.2 40.5 230 825 1080
1047-3626 M36 26 44 36 70 27.5 46 280 930 1200
