General Details

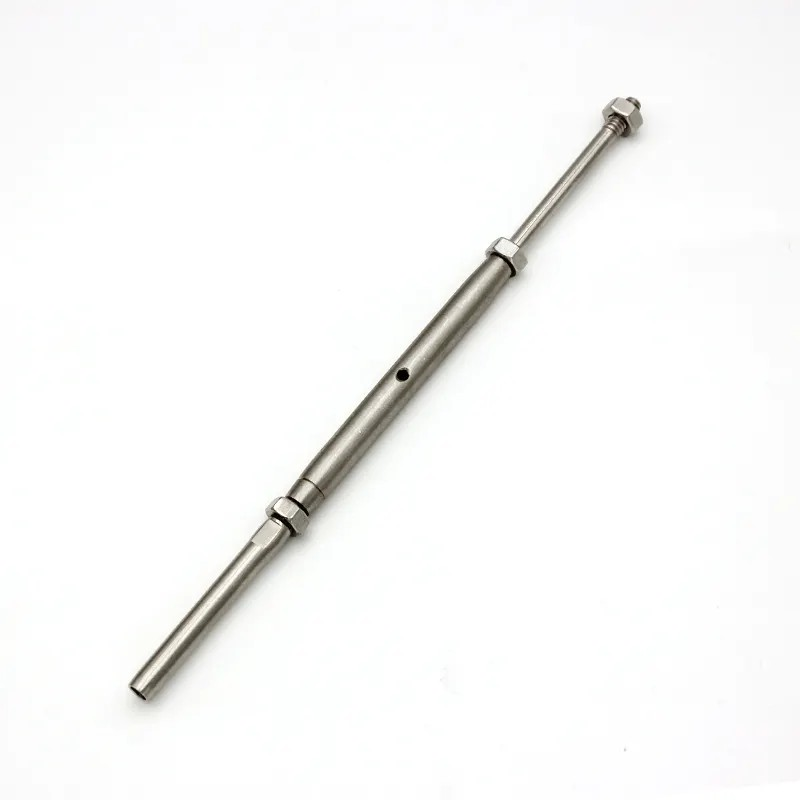

Rigging Screw with Swage & Stud is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Rigging Screw with Swage & Stud | |||||||||||||||

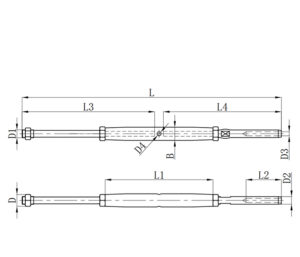

| ITEM NO | WireΦ | D1 | B | L1 | L2 | L3 | L4 | D | D2 | D3 | D4 | ||||
| in | in | in | in | in | in | in | in | in | in | in | |||||
| 1017-1/8 | 1/8″ | 1/4″-28 | 0.292″-0.298″ | 4.43″ | 1.75″ | 4.1″ | 4.75″ | 0.56″ | 0.295″ | 0.201″ | 0.11″ | ||||
| 1017-3/16 | 3/16″ | 5/16″-24 | 0.435″ | 5.14″ | 1.52″ | 6.00″ | 4.75″ | 0.56″ | 0.425″ | 0.265″ | 0.19″ | ||||
