General Details

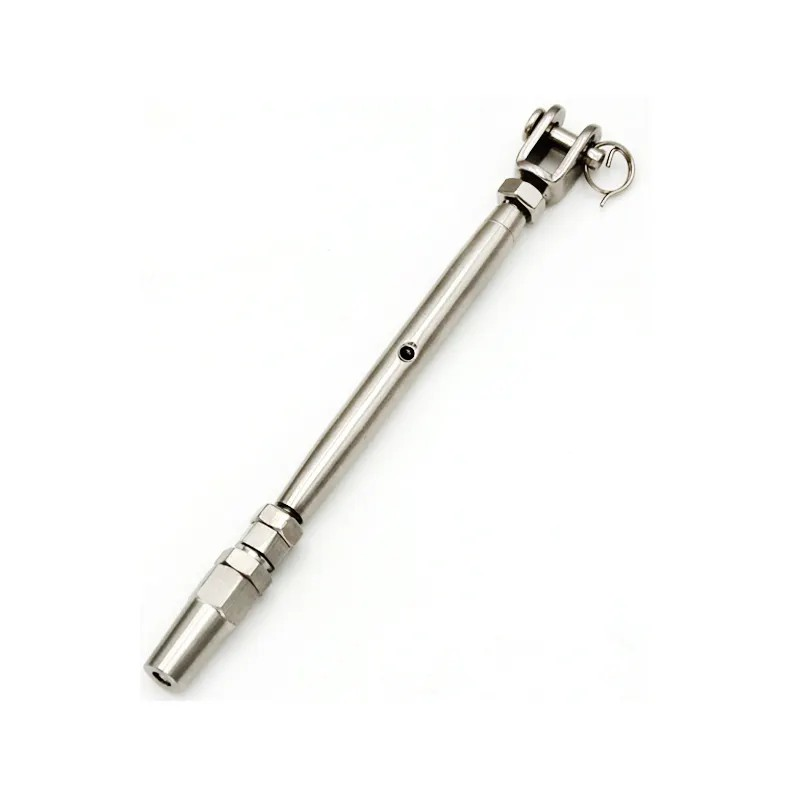

Rigging Screw with Swageless Fork is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

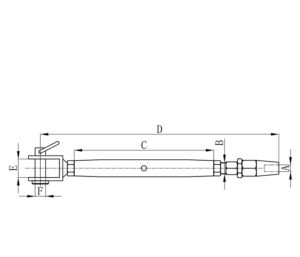

| Rigging Screw with Swageless Fork | |||||||||||||||
| ITEM NO | A | B | C | D | E | F | |||||||||
| (WIRE SIZE) | (THREAD) | in | in | in | in | ||||||||||
| 1018-0603 | 1/8″ | 1/4″ | 4.20″ | 7.00″ | 0.36″ | 0.23″ | |||||||||
| 1018-0604 | 5/32″ | 1/4″ | 4.20″ | 7.25″ | 0.36″ | 0.23″ | |||||||||
| 1018-0804 | 5/32″ | 5/16″ | 4.40″ | 7.52″ | 0.38″ | 0.31″ | |||||||||
| 1018-0805 | 3/16″ | 5/16″ | 4.40″ | 7.84″ | 0.38″ | 0.31″ | |||||||||
| 1018-1005 | 3/16″ | 3/8″ | 4.90″ | 8.86″ | 0.49″ | 0.37″ | |||||||||
| 1018-1006 | 1/4″ | 3/8″ | 4.90″ | 9.25″ | 0.49″ | 0.37″ | |||||||||
| 1018-1206 | 1/4″ | 1/2″ | 5.98″ | 10.81″ | 0.62″ | 0.48″ | |||||||||
| 1018-1208 | 5/16″ | 1/2″ | 5.98″ | 11.42″ | 0.62″ | 0.48″ | |||||||||
| 1018-1610 | 3/8″ | 5/8″ | 7.66″ | 14.51″ | 0.77″ | 0.63″ | |||||||||
