General Details

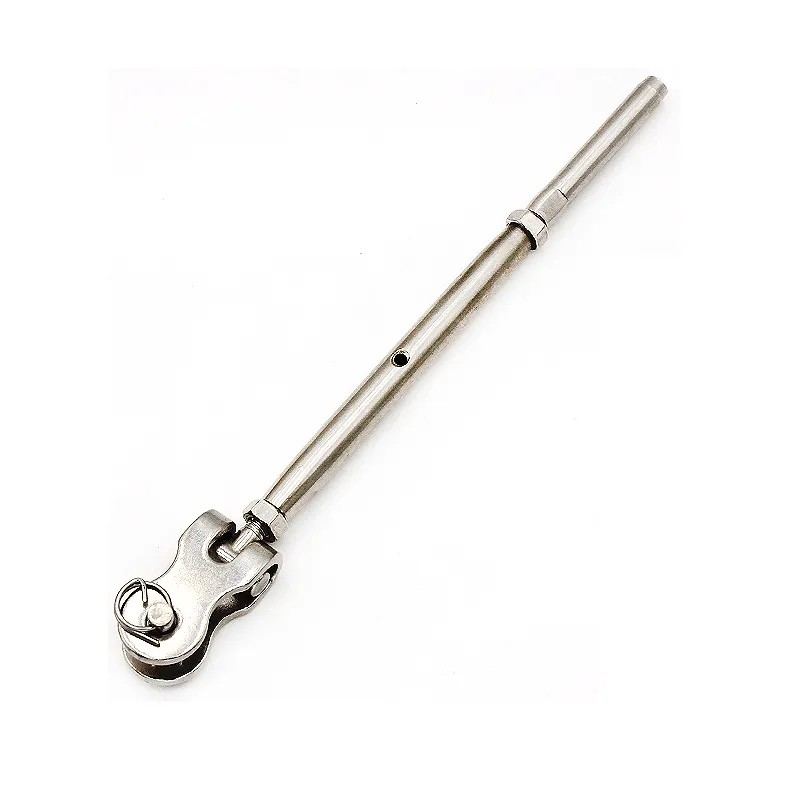

Rigging Screw with Toggle & Swage, European T Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Rigging Screw with Toggle & Swage, European T Type

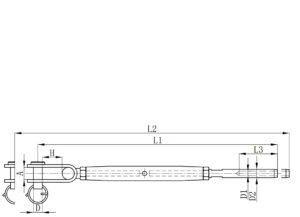

ITEM NO Thread Wire A D H D1 D2 L3 L1 L2
size mm mm mm mm mm mm mm mm mm
1051-0603 M6 3 7 6 15 3.3 6.35 39 180 250
1051-0604 M6 4 7 6 15 4.3 7.5 45 190 260
1051-0804 M8 4 10 8 20 4.3 7.5 45 210 285
1051-0805 M8 5 10 8 20 5.3 9 52 215 290
1051-1005 M10 5 12 9 25 5.3 9 52 250 340
1051-1006 M10 6 12 9 25 6.4 12.6 64 265 355
1051-1206 M12 6 13 12 30 6.4 12.6 64 300 410
1051-1208 M12 8 13 12 30 8.4 16 80 320 430
1051-1608 M16 8 17 16 40 8.4 16 80 390 530
1051-1610 M16 10 17 16 40 10.5 18 90 400 540
1051-2010 M20 10 20 19 45 10.5 18 90 450 590
1051-2012 M20 12 20 19 45 12.6 20 105 465 605
