General Details

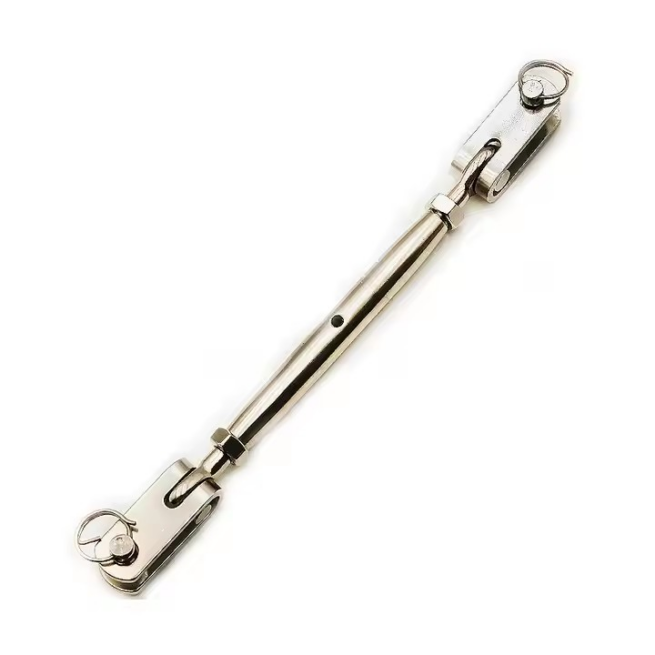

Rigging Screw with Toggle & Toggle, European Eye Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

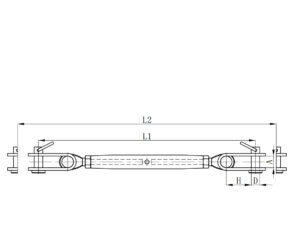

| Rigging Screw with Toggle & Toggle, European Eye Type | |||||||||||||||
| ITEM NO | Thread Size | A (mm) | D (mm) | H (mm) | L1 (mm) | L2 (mm) | |||||||||
| 1045-0006 | M6 | 8 | 6 | 13 | 195 | 265 | |||||||||
| 1045-0008 | M8 | 10 | 8 | 16 | 245 | 315 | |||||||||
| 1045-0010 | M10 | 12 | 9 | 20 | 290 | 350 | |||||||||
| 1045-0012 | M12 | 18 | 12 | 25 | 350 | 455 | |||||||||
| 1045-0016 | M16 | 20 | 16 | 29 | 455 | 585 | |||||||||
| 1045-0020 | M20 | 24 | 19 | 30 | 515 | 665 | |||||||||
| 1045-0022 | M22 | 26 | 22 | 35 | 605 | 785 | |||||||||
| 1045-0024 | M24 | 29 | 25 | 40 | 715 | 945 | |||||||||
| 1045-0027 | M27 | 34 | 28 | 46 | 790 | 1025 | |||||||||
| 1045-0030 | M30 | 40 | 32 | 54 | 875 | 1135 | |||||||||
| 1045-0036 | M36 | 44 | 36 | 62 | 960 | 1230 | |||||||||
