General Details

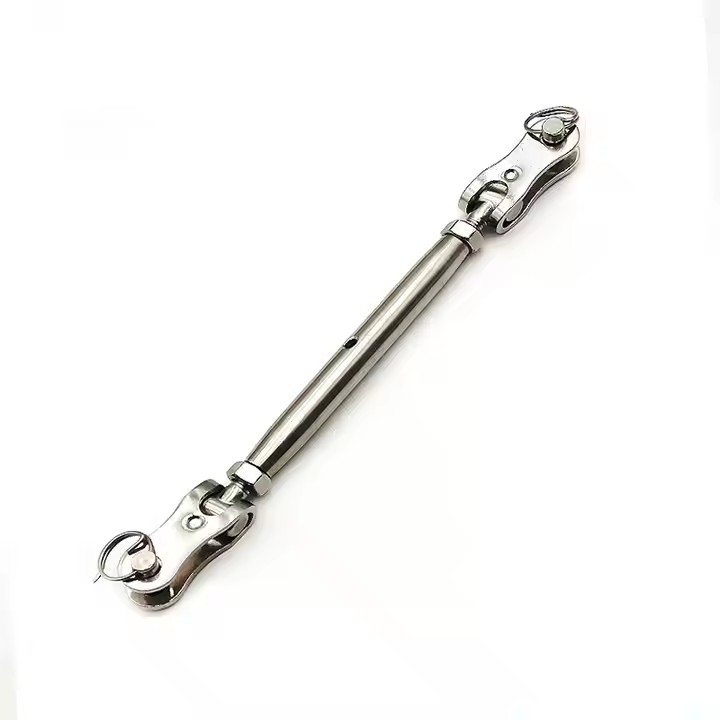

Rigging Screw with Toggle & Toggle, European T Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Rigging Screw with Toggle & Toggle, European T Type | |||||||||||||||

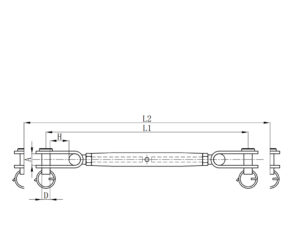

| ITEM NO | Thread Size | A（mm） | D（mm） | H （mm） | L1（mm） | L2（mm） | |||||||||
| 1044-0006 | M6 | 7 | 6 | 15 | 160 | 230 | |||||||||
| 1044-0008 | M8 | 10 | 8 | 20 | 190 | 265 | |||||||||
| 1044-0010 | M10 | 12 | 9 | 25 | 230 | 320 | |||||||||
| 1044-0012 | M12 | 13 | 12 | 30 | 280 | 390 | |||||||||
| 1044-0016 | M16 | 17 | 16 | 40 | 370 | 510 | |||||||||
| 1044-0020 | M20 | 20 | 19 | 45 | 430 | 570 | |||||||||
