General Details

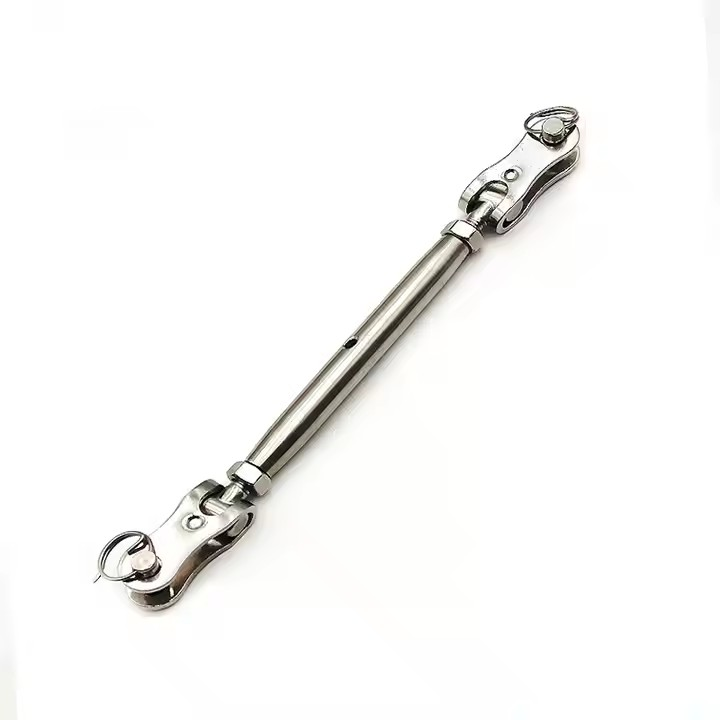

Rigging Screw with Toggle & Toggle, US T Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

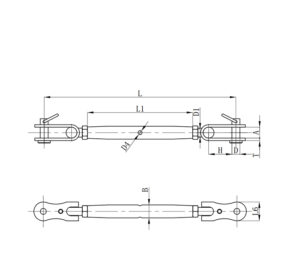

| Rigging Screw with Toggle & Toggle, US T Type | |||||||||||||||
| ITEM NO | D1 | B | L | L1 | L6 | A | D | D4 | H | T | Body THK | ||||
| 1004-1/4 | 1/4″ | 0.39″ | 6.3″ | 3.74″ | 0.59″ | 0.28″ | 0.24″ | 0.13″ | 0.39″ | 0.12″ | 0.07″ | ||||
| 1004-5/16 | 5/16″ | 0.51″ | 7.48″ | 4.13″ | 0.75″ | 0.39″ | 0.31″ | 0.17″ | 0.59″ | 0.12″ | 0.09″ | ||||
| 1004-3/8 | 3/8″ | 0.67″ | 9.45″ | 4.92″ | 0.98″ | 0.47″ | 0.35″ | 0.20″ | 0.7″ | 0.16″ | 0.10″ | ||||
| 1004-1/2 | 1/2″ | 0.83″ | 11.02″ | 5.91″ | 1.14″ | 0.51″ | 0.47″ | 0.24″ | 0.75″ | 0.2″ | 0.12″ | ||||
| 1004-5/8 | 5/8″ | 1.04″ | 14.57″ | 7.48″ | 1.54″ | 0.67″ | 0.63″ | 0.31″ | 1.18″ | 0.24″ | 0.14″ | ||||
| 1004-3/4 | 3/4″ | 1.32″ | 16.93″ | 8.27″ | 1.69″ | 0.79″ | 0.75″ | 0.35″ | 1.18″ | 0.24″ | 0.18″ | ||||
