General Details

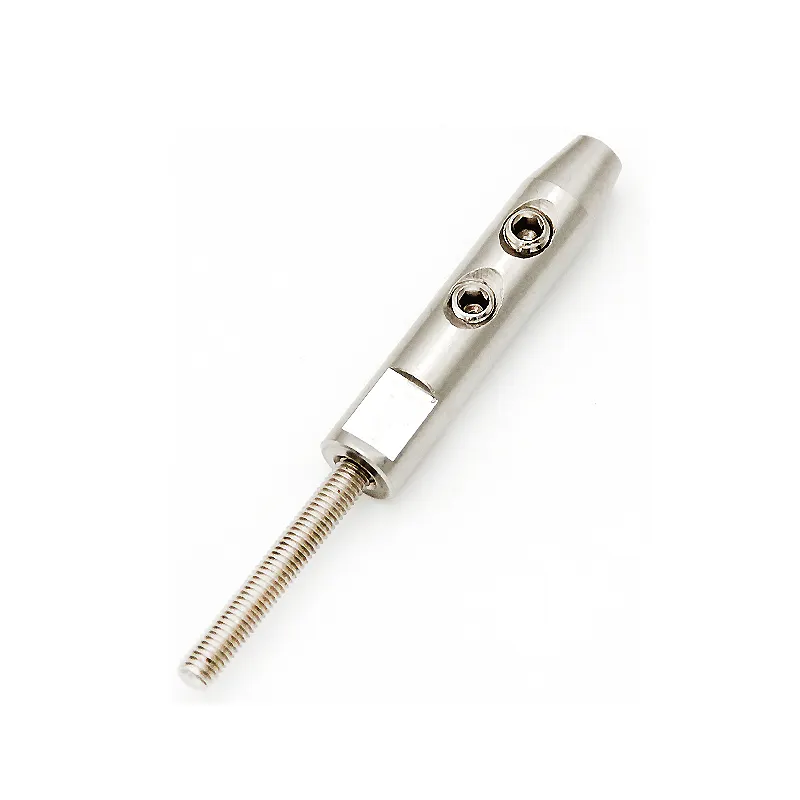

Self Assembly Terminal with Thread, 2 Jackscrews is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

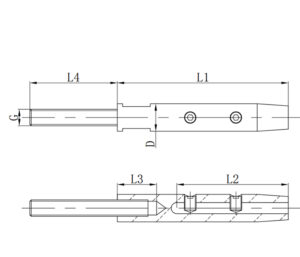

| Self Assembly Terminal with Thread, 2 Jackscrews | |||||||||||||||
| ITEM NO | WIREΦ | G | D | L1 | L2 | L3 | L4 | ||||||||
| mm | THREAD | mm | mm | mm | mm | mm | |||||||||
| 2034-0503 | 3 | M5 | 11 | 53 | 36 | 8 | 34 | ||||||||
| 2034-0604 | 4 | M6 | 13 | 58 | 38 | 9 | 37 | ||||||||
| 2034-0605 | 5 | M6 | 14 | 65 | 45 | 9 | 37 | ||||||||
| 2034-0806 | 6 | M8 | 16 | 73 | 47 | 12 | 45 | ||||||||
