General Details

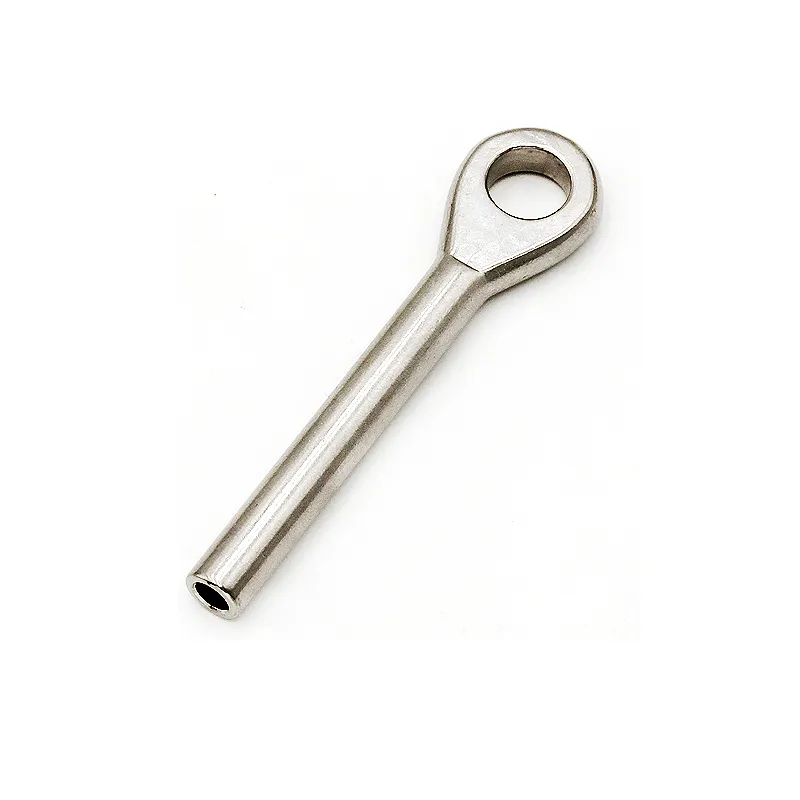

Swage Eye Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

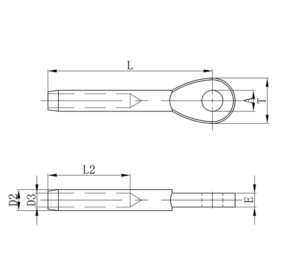

| Swage Eye Terminal | |||||||||||||||
| ITEM NO | WIRE (mm) | A (mm) | T(mm) | D2 (mm) | D3 (mm) | E(mm) | L2 (mm) | L (mm) | |||||||
| 2002-0003 | 3 | 6.5 | 14 | 6.35 | 3.3 | 4 | 36 | 55 | |||||||
| 2002-0004 | 4 | 8.5 | 18 | 7.5 | 4.3 | 5 | 39 | 65 | |||||||
| 2002-0005 | 5 | 10.5 | 22 | 9 | 5.5 | 6 | 50 | 80 | |||||||
| 2002-0006 | 6 | 12.5 | 28 | 12.6 | 6.4 | 8 | 62 | 94 | |||||||
| 2002-0007 | 7 | 12.5 | 28 | 16 | 7.4 | 9 | 68 | 105 | |||||||
| 2002-0008 | 8 | 14.5 | 32 | 16 | 8.4 | 10 | 85 | 124 | |||||||
| 2002-0010 | 10 | 16.4 | 36 | 18 | 10.5 | 11 | 90 | 142 | |||||||
| 2002-0012 | 12 | 19.3 | 40 | 20 | 12.6 | 15 | 105 | 160 | |||||||
| 2002-0016 | 16 | 25 | 53 | 28 | 16.8 | 15.5 | 165 | 222 | |||||||
| 2002B-0016 | 16 | 25 | 53 | 28 | 16.8 | 15.5 | 195 | 262 | |||||||
