General Details

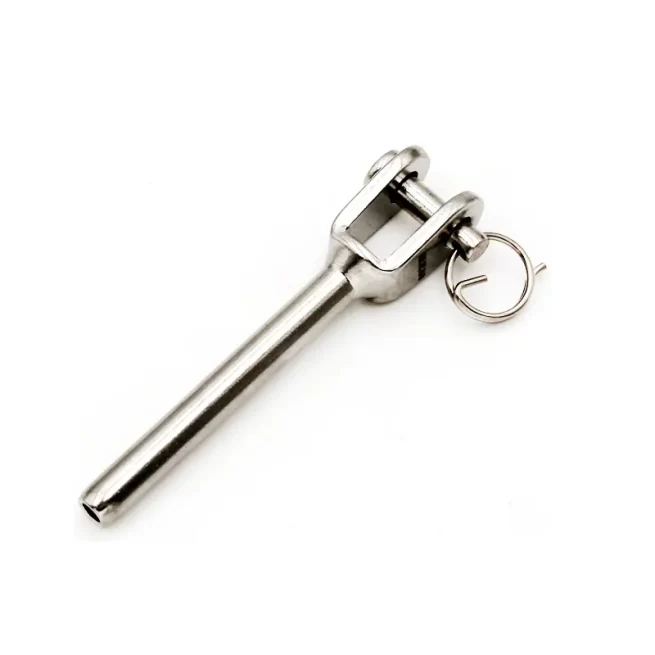

Swage Fork Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Swage Fork Terminal | |||||||||||||||
| ITEM NO | WIRE Φ | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L2 (mm) | |||||||
| 2005-0002 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 55 | 24 | |||||||
| 2005-0003 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 65 | 32 | |||||||
| 2005-0004 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 77 | 40 | |||||||
| 2005-0005 | 5 | 12 | 9 | 14 | 5.3 | 9 | 88 | 57 | |||||||
| 2005-0006 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 106 | 63 | |||||||
| 2005-0007 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 116 | 70 | |||||||
| 2005-0008 | 8 | 17 | 16 | 26 | 8.4 | 16 | 145 | 85 | |||||||
| 2005-0010 | 10 | 20 | 19 | 30 | 10.5 | 18 | 150 | 90 | |||||||
| 20050012 | 12 | 23 | 19 | 35 | 12.6 | 20 | 195 | 105 | |||||||
| 2005-0014 | 14 | 30 | 22 | 48 | 14.7 | 25 | 235 | 143 | |||||||
| 2005-0016 | 16 | 32 | 22 | 50 | 16.5 | 28 | 260 | 160 | |||||||
| 2005-0019 | 19 | 32 | 28 | 52 | 19.5 | 34.5 | 310 | 205 | |||||||
| 2005-0025 | 25 | 44 | 36 | 65 | 25.5 | 46 | 430 | 285 | |||||||
