General Details

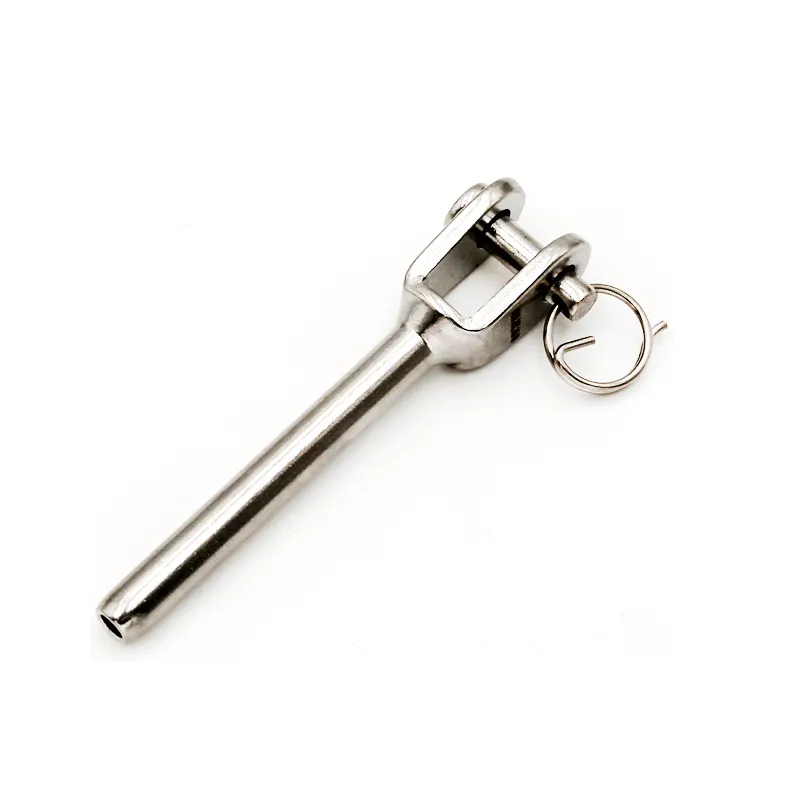

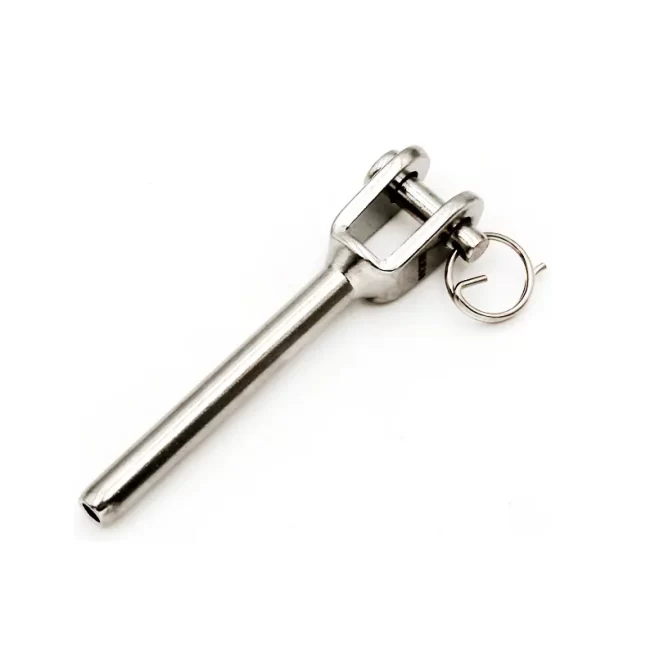

Swage Fork, US Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

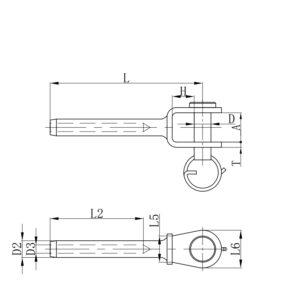

| Swage Fork, US Type | |||||||||||||||
| ITEM NO | WireΦ | L | L2 | L5 | L6 | A | D | D2 | D3 | H | T | ||||
| in | in | in | in | in | in | in | in | in | in | in | |||||
| 2004-1/8 | 1/8″ | 2.56″ | 1.26″ | 0.39″ | 0.55″ | 0.3″ | 0.24″ | 0.25″ | 0.14″ | 0.39″ | 0.12″ | ||||
| 2004-5/32 | 5/32″ | 3.03″ | 1.57″ | 0.47″ | 0.73″ | 0.43″ | 0.31″ | 0.295″ | 0.165″ | 0.43″ | 0.12″ | ||||
| 2004-3/16 | 3/16″ | 3.46″ | 2.24″ | 0.53″ | 0.83″ | 0.47″ | 0.35″ | 0.354″ | 0.201″ | 0.55″ | 0.16″ | ||||
| 2004-1/4 | 1/4″ | 4.17″ | 2.48″ | 0.73″ | 1.02″ | 0.55″ | 0.47″ | 0.496″ | 0.265″ | 0.79″ | 0.2″ | ||||
| 2004-9/32 | 9/32″ | 4.57″ | 2.76″ | 0.81″ | 1.04″ | 0.59″ | 0.47″ | 0.559″ | 0.297″ | 0.87″ | 0.2″ | ||||
| 2004-5/16 | 5/16″ | 5.71″ | 3.35″ | 0.96″ | 1.42″ | 0.67″ | 0.63″ | 0.63″ | 0.328″ | 1.02″ | 0.24″ | ||||
| 2004-3/8 | 3/8″ | 5.91″ | 3.54″ | 1.16″ | 1.79″ | 0.79″ | 0.75″ | 0.709″ | 0.395″ | 1.18″ | 0.24″ | ||||
| 2004-1/2 | 1/2” | 7.68″ | 4.13″ | 1.16″ | 1.79″ | 0.91″ | 0.75″ | 0.842″ | 0.524″ | 1.38″ | 0.24″ | ||||
