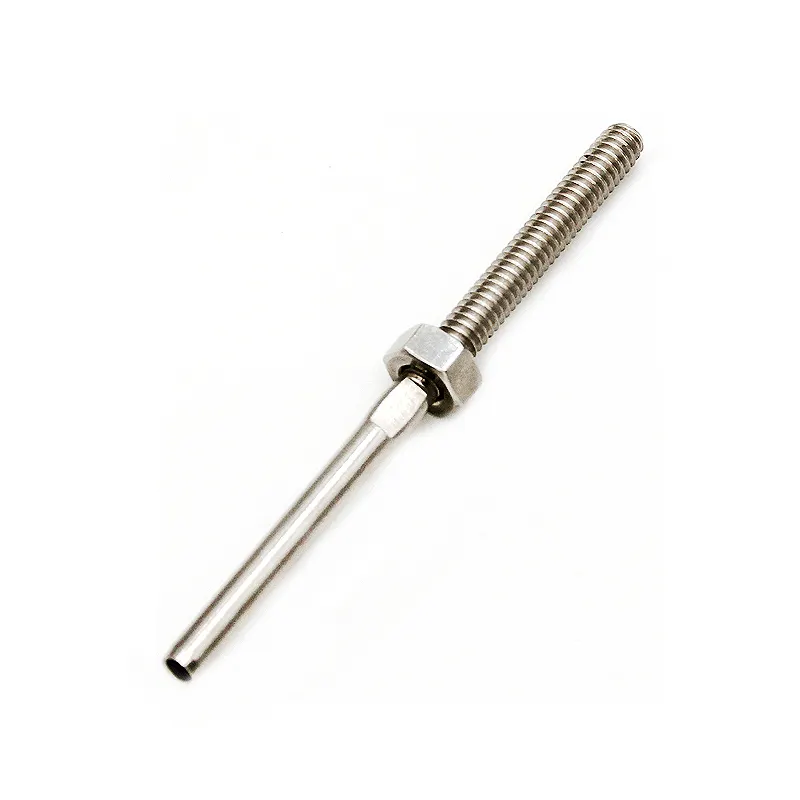

Swage Stud Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Swage Stud Terminal

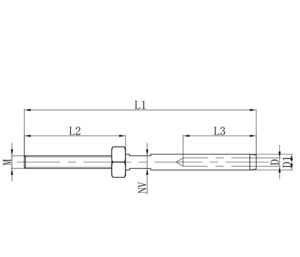

ITEM NO M (mm) Wire（mm） D(mm) D1 (mm) L3 (mm) L2  (mm) L1   (mm) NV   (mm)
2010-0402 M4 2 2.2 4.8 24 38 73 3
2010-0502 M5 2 2.2 5.5 32 40 86 4
2010-0525 M5 2.5 2.7 5.5 32 40 86 4
2010-0532 M5 3.2 3.5 6.35 38 40 90 5
2010-0603 M6 3 3.3 6.35 39 48 100 5
2010-0632 M6 3.2 3.5 6.35 39 48 100 5
2010-0604 M6 4 4.3 7.5 45 48 110 6
2010-0804 M8 4 4.3 7.5 45 57 117 6
2010-0805 M8 5 5.3 9 52 57 124 7
2010-1005 M10 5 5.3 9 52 63 130 7
2010-1006 M10 6 6.4 12.6 64 63 145 10
2010-1206 M12 6 6.4 12.6 64 80 162 10
2010-1208 M12 8 8.4 16 80 80 180 14
2010-1407 M14 7 7.4 14.2 70 90 180 12
2010-1608 M16 8 8.4 16 80 100 200 14
2010-1610 M16 10 10.5 18 90 100 210 15
2010-2010 M20 10 10.5 18 90 119 230 15
2010-2012 M20 12 12.6 20 105 120 245 17
2010-2214 M22 14 14.7 25 140 140 308 23
2010-2416 M24 16 16.9 28 160 170 363 25
2010-2719 M27 19 20 34.5 200 180 425 30
2010-3022 M30 22 23.2 40.5 230 200 480 36
2010-3626 M36 26 27.5 46 280 220 550 41
