General Details

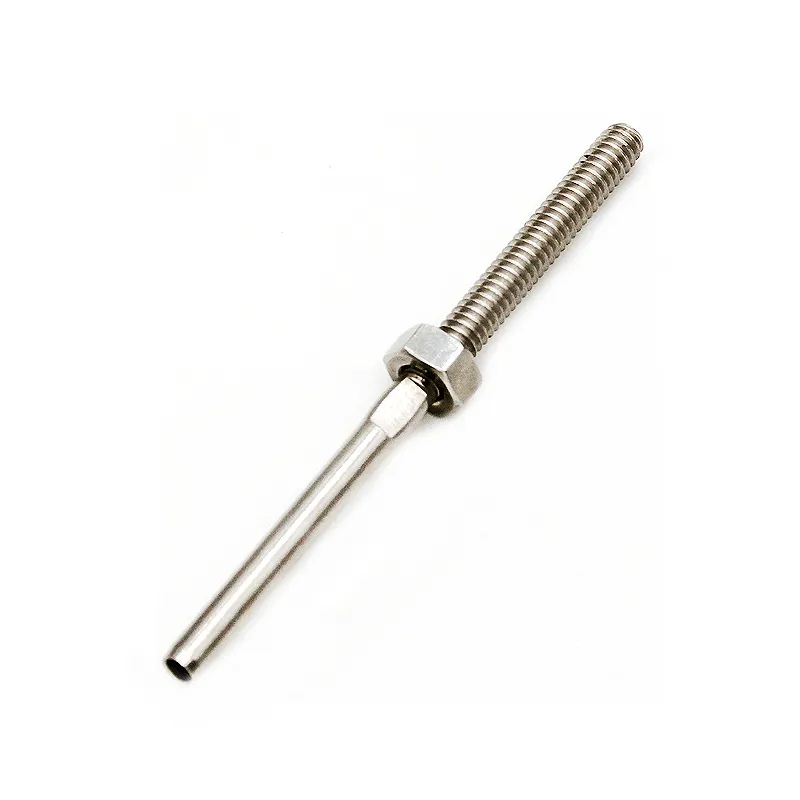

Swage Stud Terminal, US Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

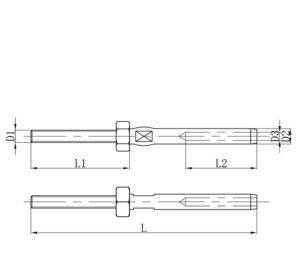

| Swage Stud Terminal, US Type | |||||||||||||||
| ITEM NO | D1 | Wire | L | L1 | L2 | D2 | D3 | ||||||||
| in | in | in | in | in | in | in | |||||||||
| 2009-1/4*1/8 | 1/4″ | 1/8″ | 3.94″ | 1.89″ | 1.54″ | 0.25″ | 0.14″ | ||||||||
| 2009-1/4*5/32 | 1/4″ | 5/32″ | 4.33″ | 1.89″ | 1.77″ | 0.295″ | 0.165″ | ||||||||
| 2009-5/16*5/32 | 5/16″ | 5/32″ | 4.61″ | 2.24″ | 1.77″ | 0.295″ | 0.165″ | ||||||||
| 2009-5/16*3/16 | 5/16″ | 3/16″ | 4.88″ | 2.24″ | 2.05″ | 0.354″ | 0.201″ | ||||||||
| 2009-3/8*3/16 | 3/8″ | 3/16″ | 5.12″ | 2.48″ | 2.05″ | 0.354″ | 0.201″ | ||||||||
| 2009-3/8*1/4 | 3/8″ | 1/4″ | 5.71″ | 2.48″ | 2.52″ | 0.496″ | 0.265″ | ||||||||
| 2009-1/2*1/4 | 1/2″ | 1/4″ | 6.38″ | 3.15″ | 2.52″ | 0.496″ | 0.265″ | ||||||||
| 2009-1/2*5/16 | 1/2″ | 5/16″ | 7.09″ | 3.15″ | 3.15″ | 0.63″ | 0.328″ | ||||||||
| 2009-9/16*9/32 | 9/16″ | 9/32″ | 7.09″ | 3.54″ | 2.76″ | 0.559″ | 0.297″ | ||||||||
| 2009-5/8*5/16 | 5/8″ | 5/16″ | 7.87″ | 3.94″ | 3.15″ | 0.63″ | 0.328″ | ||||||||
| 2009-5/8*3/8 | 5/8″ | 3/8″ | 8.27″ | 3.94″ | 3.54″ | 0.709″ | 0.395″ | ||||||||
| 2009-3/4*3/8 | 3/4″ | 3/8″ | 9.06″ | 4.69″ | 3.54″ | 0.709″ | 0.395″ | ||||||||
| 2009-3/4*1/2 | 3/4″ | 1/2″ | 9.65″ | 4.72″ | 4.13″ | 0.842″ | 0.524″ | ||||||||
