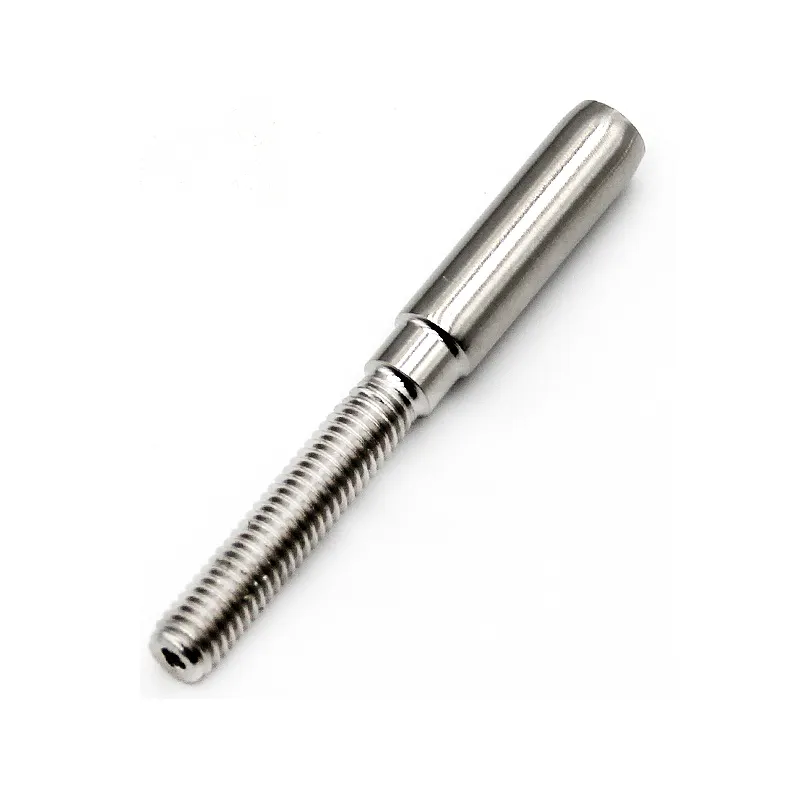

Swage Stud with External Thread is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

Swage Stud with External Thread

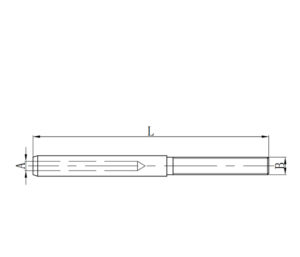

ITEM NO B(THREADxLENGTH) CABLE L AFTER SWAGE A
2013-1/8″ 1/4”-20 x 2-1/2″ 1/8” 4-1/4” 0.215″ 0.14”
2013-1/8″-L 1/4”-20 x 2-1/2″ LH 1/8” 4-1/4” 0.215″ 0.14”
2013-3/16″ 1/4”-20 x 2-1/2″ 3/16” 4-1/4” 0.31″ 0.201”
2013-3/16″L 1/4”-20 x 2-1/2″ LH 3/16” 4-1/4” 0.31″ 0.201”
2013-1/4″ 5/16”-18 x 2-1/2″ 1/4” 4-3/4” 0.432″ 0.265”
2013-1/4″-L 5/16”-18 x 2-1/2″ LH 1/4” 4-3/4” 0.432″ 0.265”
2013-3/8″ 3/8”-16 x 3 1/4” 5-1/4” 0.432″ 0.265”
2013-3/8″L 3/8”-16 x 3 LH 1/4” 5-1/4” 0.432″ 0.265”
