General Details

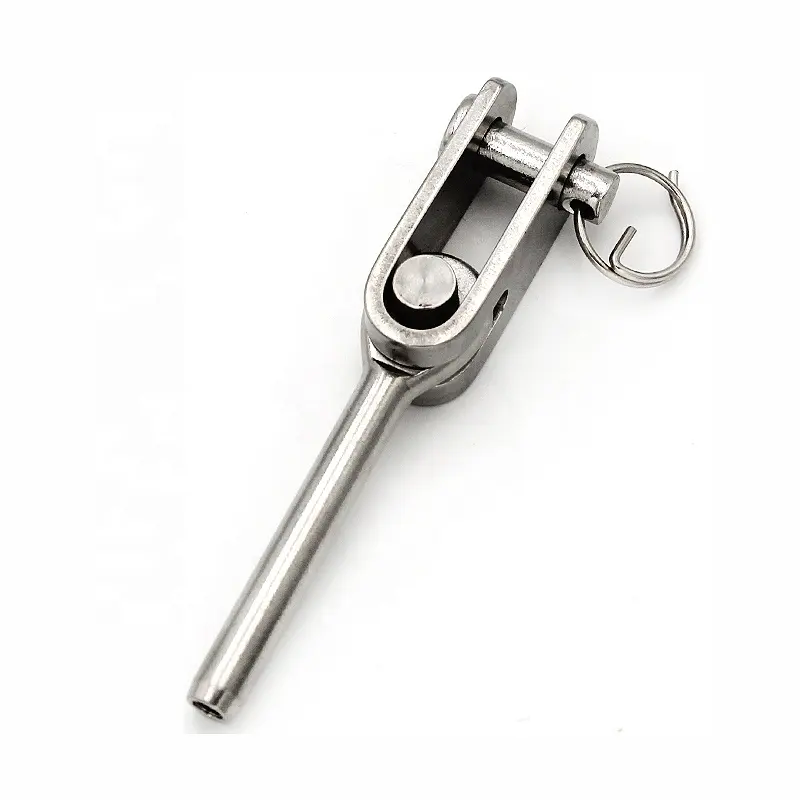

Swage Toggle Terminal, Eye Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

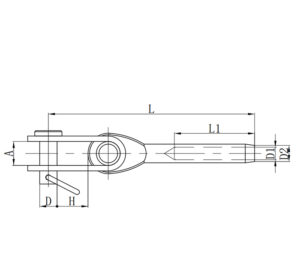

Swage Toggle Terminal, Eye Type | |||||||||||||||
ITEM NO | Wire(mm) | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L (mm) | |||||||
2024-0003 | 3 | 8 | 6 | 13 | 3.3 | 6.35 | 36 | 81 | |||||||
2024-0004 | 4 | 10 | 8 | 13 | 4.3 | 7.5 | 39 | 94 | |||||||
2024-0005 | 5 | 12 | 9 | 20 | 5.3 | 9 | 50 | 116 | |||||||
2024-0006 | 6 | 18 | 12 | 25 | 6.4 | 12.6 | 62 | 135 | |||||||
2024-0007 | 7 | 18 | 12 | 25 | 7.4 | 14.2 | 68 | 157 | |||||||
2024-0008 | 8 | 18 | 16 | 29 | 8.4 | 16 | 85 | 170 | |||||||
2024-0010 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 192 | |||||||
2024-0012 | 12 | 26 | 22 | 35 | 14.7 | 25 | 140 | 277 | |||||||
2024-0014 | 14 | 26 | 22 | 35 | 14.7 | 25 | 140 | 277 | |||||||
2024-0016 | 16 | 29 | 25 | 40 | 16.9 | 28 | 160 | 313 | |||||||
2024-0019 | 19 | 34 | 28 | 46 | 20 | 34.5 | 200 | 399 | |||||||
2024-0022 | 22 | 40 | 32 | 54 | 23.2 | 40.5 | 230 | 463 | |||||||
2024-0026 | 26 | 44 | 36 | 62 | 27.5 | 46 | 280 | 518 |
