General Details
Swage Toggle Terminal, US Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

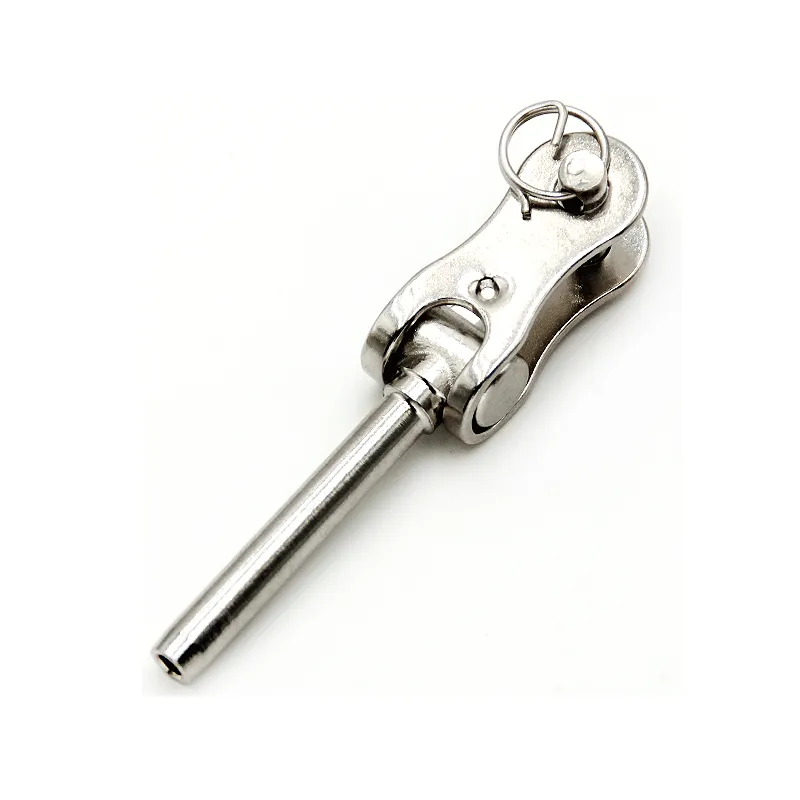

Swage Toggle Terminal, US Type
ITEM NO WIREΦ L L1 L2 D D2 D3 D4 A B H T WT
in in in in in in in in in in in in KGS
2022-H1/8 1/8″ 2.4″ 3.2″ 1.25″ 0.23″ 0.218″ 0.14″ 0.39″ 0.4″ 0.65″ 0.685″ 0.08″ 0.035
2022-H3/16 3/16″ 2.6″ 3.4″ 1.56″ 0.23″ 0.295″ 0.201″ 0.39″ 0.4″ 0.65″ 0.685″ 0.08″ 0.039
2022-H1/4 1/4″ 2.63″ 3.8″ 1.8″ 0.31″ 0.425″ 0.265″ 0.5″ 0.51″ 0.83″ 0.71″ 0.11″ 0.048
2022-M1/8 1/8″ 2.4″ 3.2″ 1.25″ 0.23″ 0.218″ 0.14″ 0.39″ 0.4″ 0.65″ 0.685″ 0.08″ 0.038
2022-M3/16 3/16″ 2.6″ 3.4″ 1.56″ 0.23″ 0.295″ 0.201″ 0.39″ 0.4″ 0.65″ 0.685″ 0.08″ 0.04
2022-M1/4 1/4″ 2.95″ 3.8″ 1.8″ 0.31″ 0.425″ 0.265″ 0.5″ 0.51″ 0.83″ 0.71″ 0.11″ 0.107
