General Details

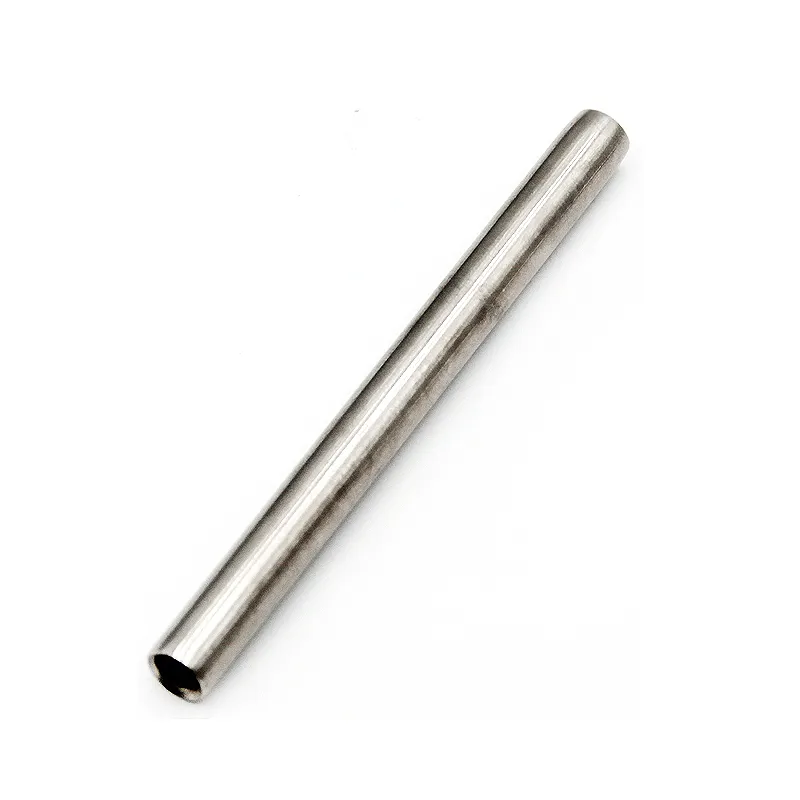

Swage with Internal Thread is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
| Swage with Internal Thread | |||||||||||||||
| ITEM NO | M (mm) | Wire（mm） | D (mm) | D1 (mm) | L1 (mm) | L2 (mm) | L (mm) | ||||||||
| 2012-0503 | M5 | 3 | 6.35 | 3.3 | 20 | 28 | 55 | ||||||||
| 2012-0604 | M6 | 4 | 7.5 | 4.3 | 22 | 36 | 65 | ||||||||
| 2012-0605 | M6 | 5 | 9 | 5.3 | 22 | 41 | 70 | ||||||||
| 2012-0806 | M8 | 6 | 12.6 | 6.4 | 25 | 53 | 85 | ||||||||
| 2012-1008 | M10 | 8 | 16 | 8.4 | 40 | 60 | 106 | ||||||||
