General Details

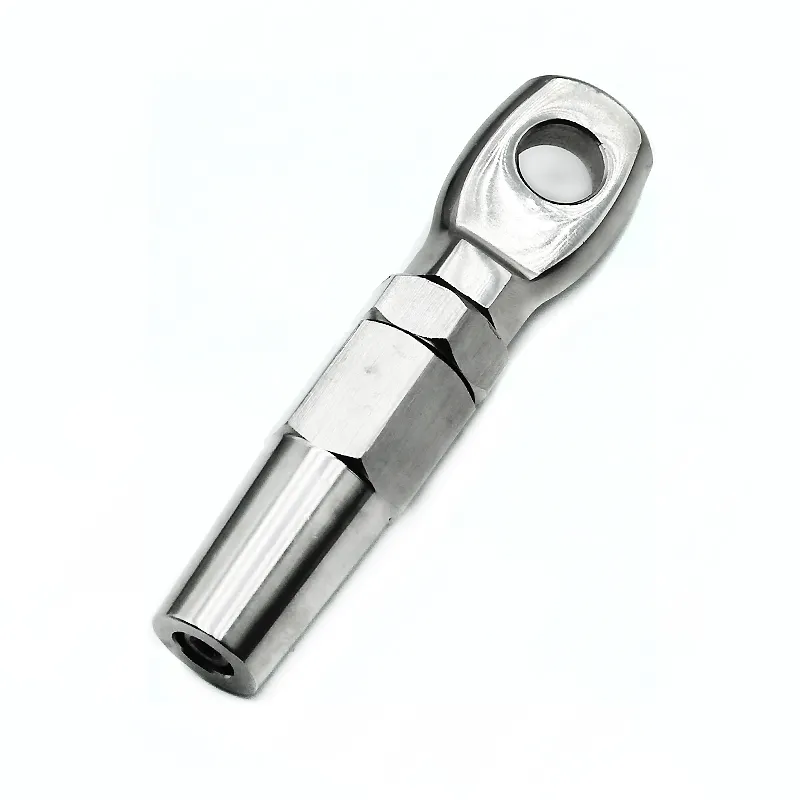

Swageless Eye Terminal, Metric,AISI316 is made from grade 316 stainless steel and used in marine, industrial and architectural applications.
Swageless Eye Terminal, Metric,AISI316 | |||||||||||||||
ITEM NO | Size | T(mm) | D(mm) | L(mm) | SW1(mm) | SW2(mm) | |||||||||
2026-0003 | 3mm | 5.5 | 6.3 | 50 | 10 | 12 | |||||||||
2026-0004 | 4mm | 7 | 8.8 | 58 | 12 | 14 | |||||||||
2026-0005 | 5mm | 8 | 10.3 | 70 | 14 | 17 | |||||||||
2026-0006 | 6mm | 9 | 13 | 84 | 17 | 19 | |||||||||
2026-0008 | 8mm | 10 | 14.5 | 103 | 19 | 24 | |||||||||
2026-0010 | 10mm | 13 | 16.2 | 116 | 24 | 27 | |||||||||
2026-0012 | 12mm | 15 | 19.5 | 137 | 27 | 32 | |||||||||
2026-0014 | 14mm | 18 | 22 | 160 | 30 | 36 | |||||||||
2026-0016 | 16mm | 20 | 25 | 170 | 32 | 41 |
