General Details

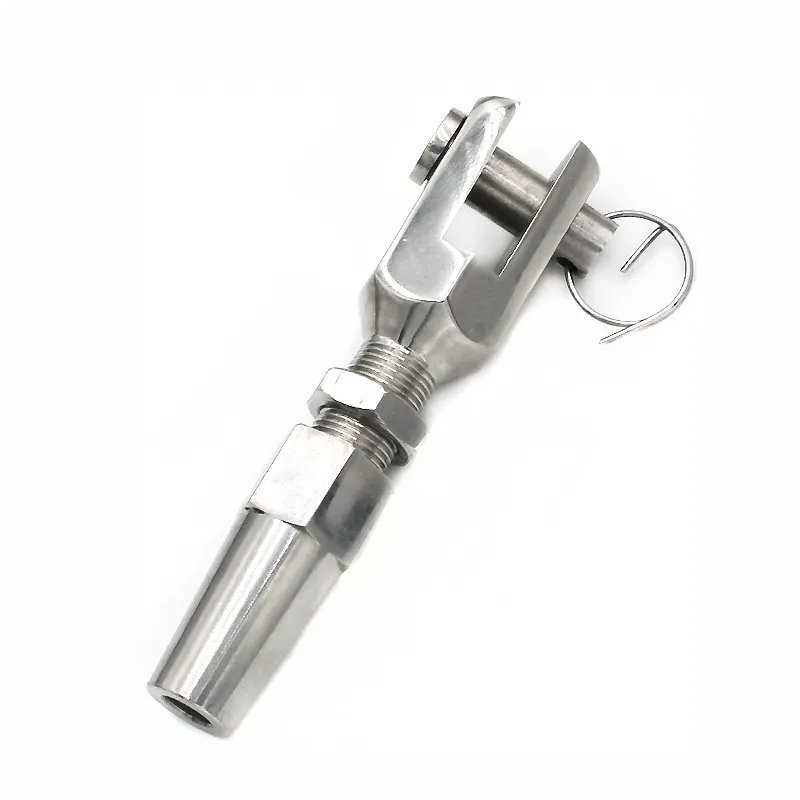

Swageless Machined Fork Terminal is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

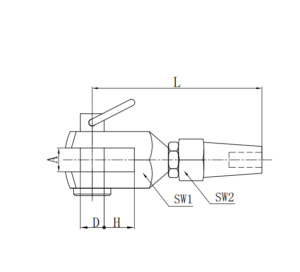

| Swageless Machined Fork Terminal | |||||||||||||||
| ITEM NO | Size | A(mm) | D(mm) | H(mm) | L(mm) | SW1(mm) | SW2(mm) | ||||||||
| 2028-0003 | 3mm | 6 | 6 | 8 | 55 | 14 | 12 | ||||||||
| 2028-0004 | 4mm | 8 | 8 | 8 | 62 | 19 | 14 | ||||||||
| 2028-0005 | 5mm | 10 | 10 | 10 | 74 | 22 | 17 | ||||||||
| 2028-0006 | 6mm | 12 | 12 | 12 | 89 | 27 | 19 | ||||||||
| 2028-0008 | 8mm | 14 | 14 | 14 | 108 | 30 | 24 | ||||||||
| 2028-0010 | 10mm | 16 | 16 | 16 | 123 | 36 | 27 | ||||||||
| 2028-0012 | 12mm | 18 | 19 | 16 | 143 | 42 | 32 | ||||||||
| 2028-0014 | 14mm | 21 | 22 | 19 | 165 | 46 | 36 | ||||||||
| 2028-0016 | 16mm | 23 | 25 | 22 | 187 | 55 | 41 | ||||||||
