General Details

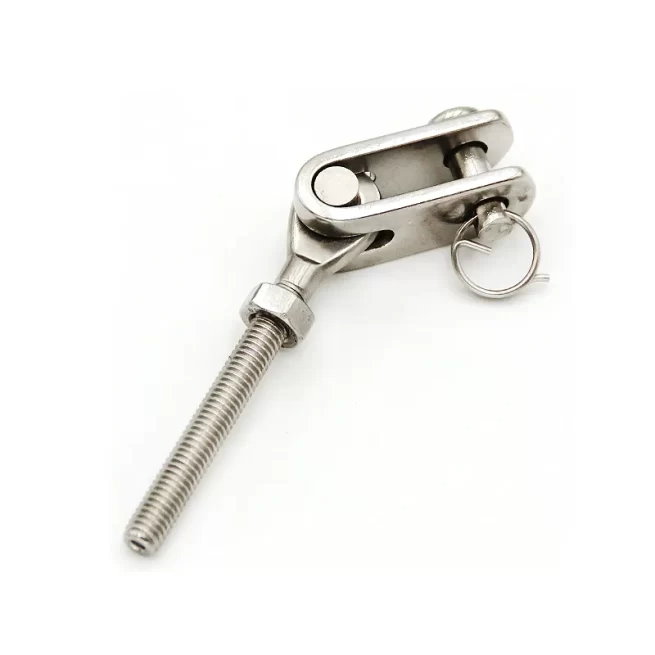

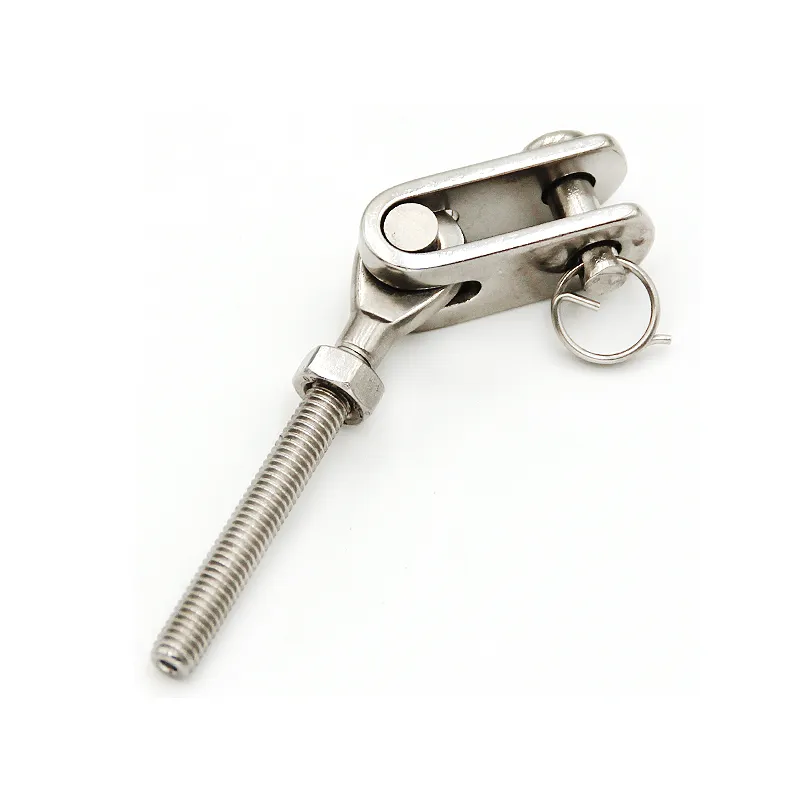

Toggle Stud, Eye Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

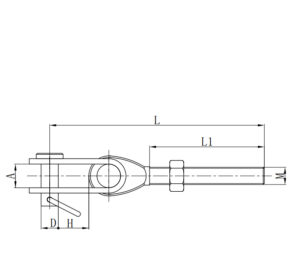

| Toggle Stud, Eye Type | |||||||||||||||
| ITEM NO | THREAD | A（ mm） | D (mm) | H (mm) | L1 (mm) | L (mm) | |||||||||
| 5006-0006 | M6 | 8 | 6 | 13 | 48 | 88 | |||||||||
| 5006-0008 | M8 | 10 | 8 | 16 | 56 | 105 | |||||||||
| 5006-0010 | M10 | 12 | 9 | 20 | 67 | 128 | |||||||||
| 5006-0012 | M12 | 18 | 12 | 25 | 81 | 154 | |||||||||
| 5006-0016 | M16 | 18 | 16 | 29 | 103 | 199 | |||||||||
| 5006-0020 | M20 | 20 | 19 | 30 | 115 | 230 | |||||||||
