General Details

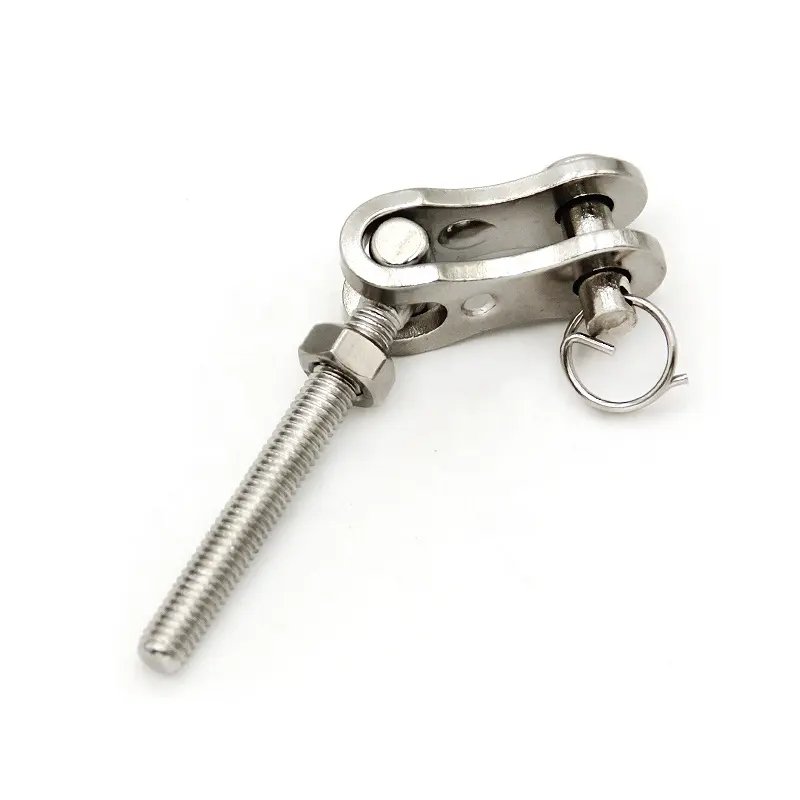

Toggle Stud, “T” Type is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

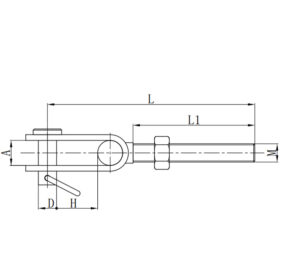

| Toggle Stud, “T” Type | |||||||||||||||
| ITEM NO | THREAD | A (mm) | D (mm) | H (mm) | L1 (mm) | L（mm） | |||||||||
| 5005-0006 | M6 | 7 | 6 | 15 | 48 | 80 | |||||||||
| 5005-0008 | M8 | 10 | 8 | 20 | 56 | 96 | |||||||||
| 5005-0010 | M10 | 12 | 9 | 25 | 67 | 115 | |||||||||
| 5005-0012 | M12 | 13 | 12 | 30 | 81 | 140 | |||||||||
| 5005-0016 | M16 | 17 | 16 | 40 | 103 | 175 | |||||||||
| 5005-0020 | M20 | 20 | 19 | 45 | 115 | 190 | |||||||||
